Removing the pressure line between the evaporator and the air conditioning condenser

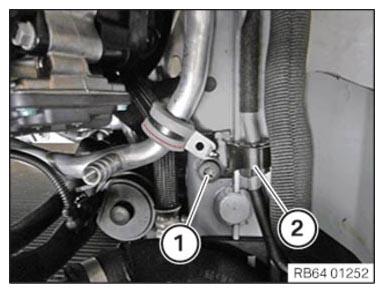

• Loosen screw (1).
• Remove the bracket (2) of the pressure line.

  Courtesy of BMW OF NORTH AMERICA, INC.

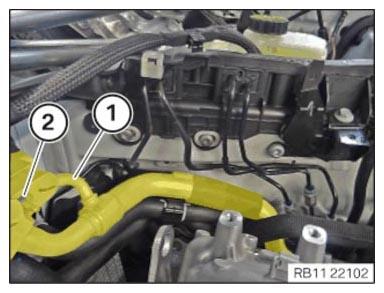

• Release the nut (2) on the pressure line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

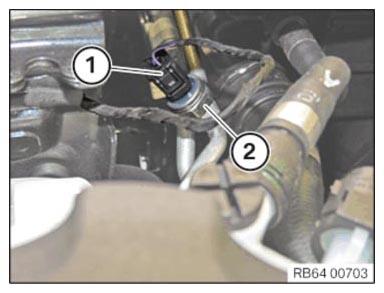

• Unlock and disconnect the plug connection (1) on the pressure switch (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

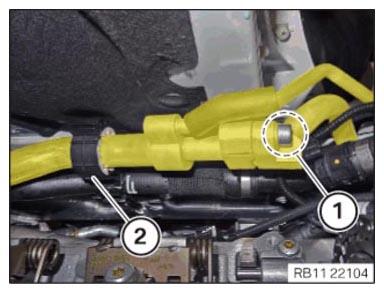

• Loosen screw (1).
• Open the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

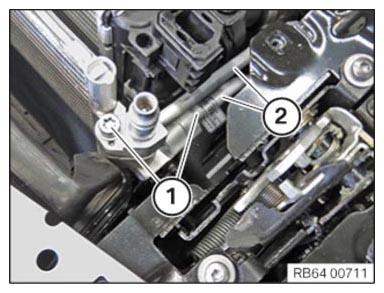

• Loosen screws (1).
• Feed out refrigerant lines (2) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.
