Removing the heat shield at the rear
Removing the heat shield at the rear

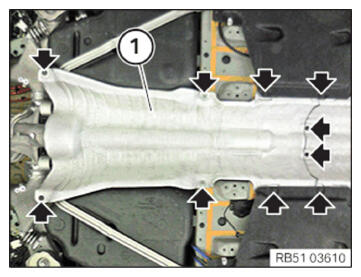

Loosen screws and nuts (arrows).
Remove the heat shield at the rear
(1)
.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
