Removing the cover for the water channel left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.

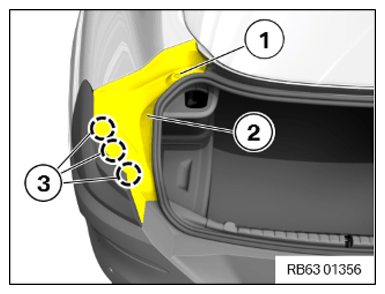

Removing the cover for the water channel
- Release clip (1) using a suitable special tool from the set of special tools 0 493 752 (00 9 329) .
- Loosen the cover (2) for the water channel from the detents (3) using a suitable tool and remove it upwards.
