Remove reinforcement brace on right
NOTE:
Description is for left component only. Procedure on the right side is identical.

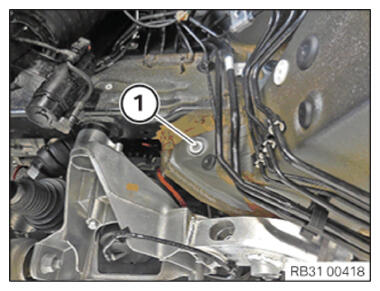

- Loosen screw (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

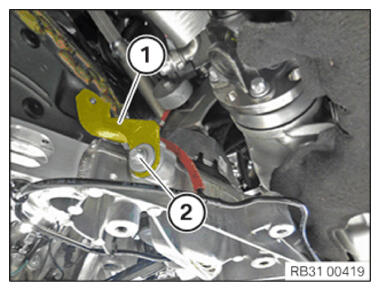

- Loosen screw (2).
- Remove reinforcement strut (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
