Releasing the top right wishbone from the swivel bearing
NOTE:
Description is for left component only. Procedure on the right side is identical.

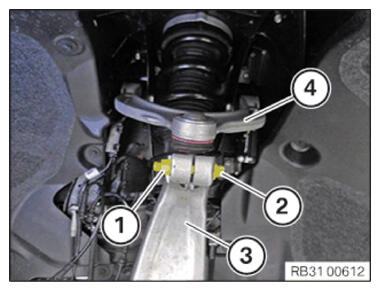

- Releasing the upper wishbone from the swivel bearing
- Loosen nut (1).
- Pull out screw (2).
- Release the upper wishbone (4) from the swivel bearing (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
