Releasing the thermostat or transmission oil cooler line from the front subframe

NOTE: TECHNICAL INFORMATION
Different variants maybe installed depending on the vehicle equipment.

Version A: Releasing the thermostat or transmission oil cooler line from the front subframe

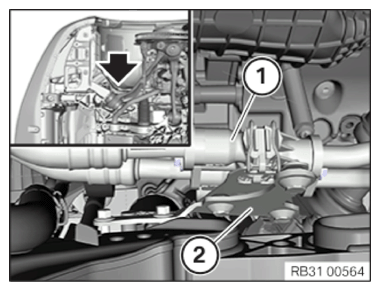

Remove the thermostat (1) for the transmission oil cooling from the holder (2) on the front axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

Version B: Releasing the thermostat or transmission oil cooler line from the front subframe

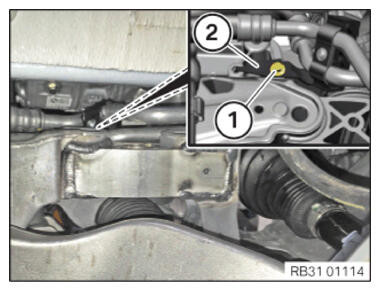

Loosen screw (1).
Release the transmission oil cooler line holder (2) from the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.

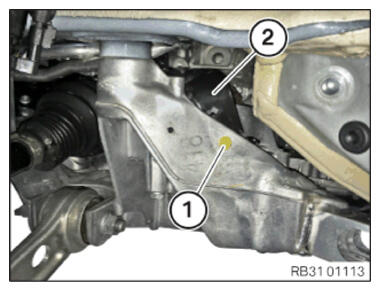

Loosen screw (1).
Release the transmission oil cooler line holder (2) from the front subframe.

Courtesy of BMW OF NORTH AMERICA, INC.
