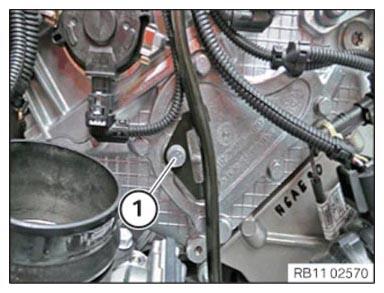

Partially installing the guide tube for the oil dipstick

• Secure the screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Guide tube for oil dipstick to cylinder head
M6x14	tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
