Installing both charge air coolers

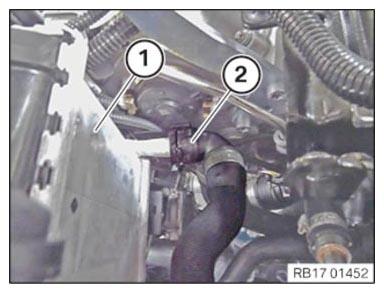

Insert and position the right-hand charge air cooler (1).
Position the charge air cooler (1) as shown.
Connect and lock the coolant line (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten down screw (3).

TIGHTENING TORQUE SPECIFICATIONS

Charge air cooler to holder
M6x35	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Position the coolant line (1) from the charge air cooler (2) to the right and clip it in.

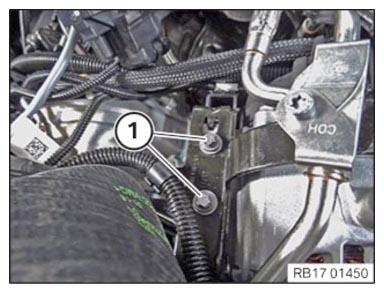

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Alternator to cylinder head
M8x85	tightening torque	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the bracket in the area (1) and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

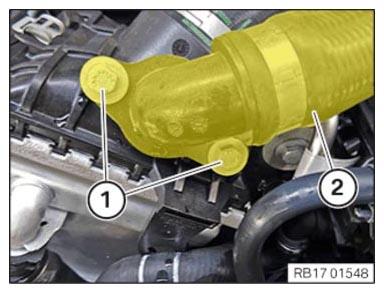

Insert and install charge air line (2).

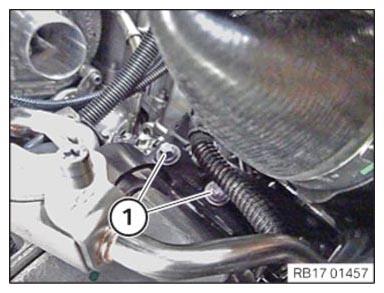

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Connecting hose to charge air cooler
Hexagon screw M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Lock clamp (2).
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

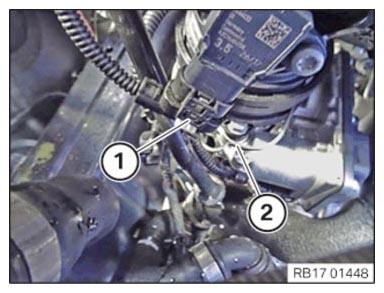

Unlock the holder at the lock (1).
Feed out the tank vent valve with holder (2) and place it on one side.

Courtesy of BMW OF NORTH AMERICA, INC.

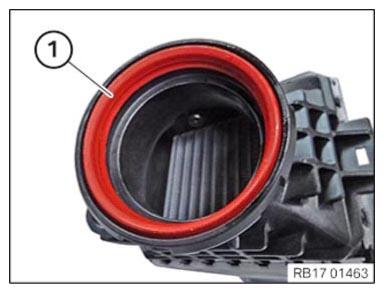

Check the seal (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

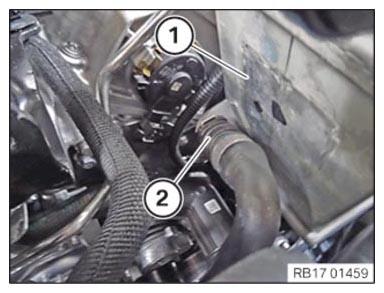

Insert and position the left-hand charge air cooler.
Position the charge air cooler (1) on the left as shown in the illustration.
Connect and lock the coolant line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

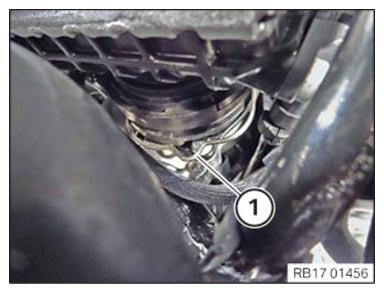

Lock clamp (1).
The clamp (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

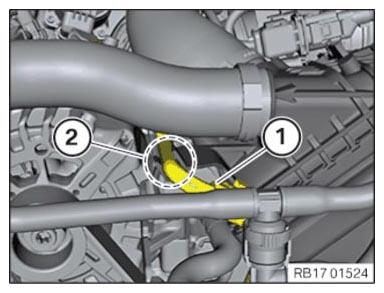

Feed in coolant line (1) and clip it in within the area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

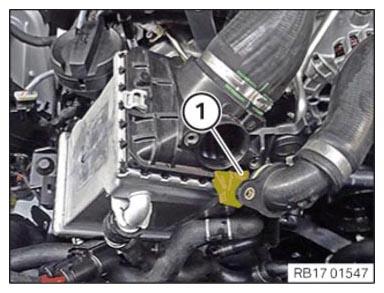

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Charge air cooler to holder
M6x35	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

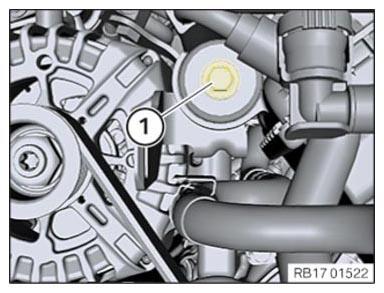

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Alternator to cylinder head
M8x85	tightening torque	22 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

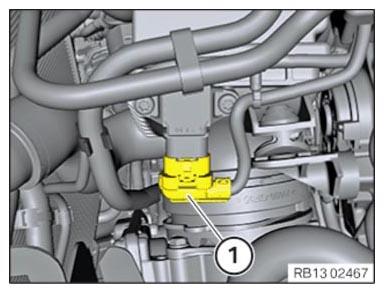

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

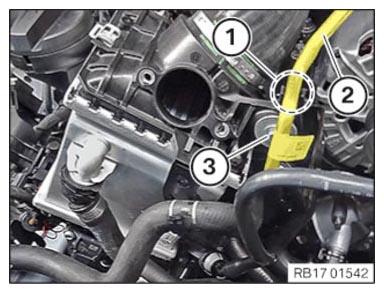

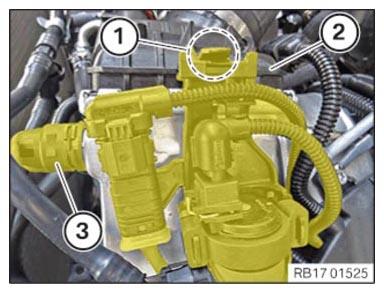

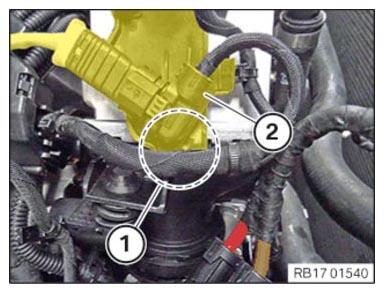

Connect and lock the coolant line (3).
The coolant line (3) must audibly engage.
Feed in and install the tank vent valve with the bracket (2).
Ensure that the locking mechanism (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Check the coolant level in the low-temperature coolant circuit and top up, if needed

CAUTION: Materials harmful to health.
Contact with fluids harmful to health!

Note and follow safety instructions on containers.
Conduct all work in appropriate personal protective equipment only.

NOTE: TECHNICAL INFORMATION
Follow notes for repair work on the cooling system.
For additional information see: NOTES FOR WORKING ON THE COOLING SYSTEM .

NOTE: TECHNICAL INFORMATION
Immobilization period-long fill of coolant!
Do not reuse used coolant.
When replacing and removing components which rely on the corrosion protection effect of the coolant, it is essential to change the coolant. The cooling system must therefore be emptied and refilled.
In the case of other removal work involving the draining of part quantities of coolant, the coolant level must be topped up with new coolant.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

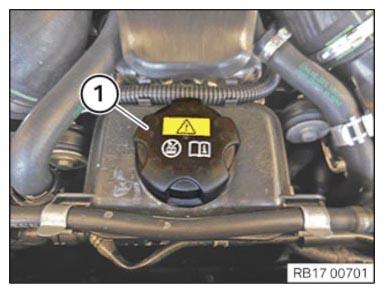

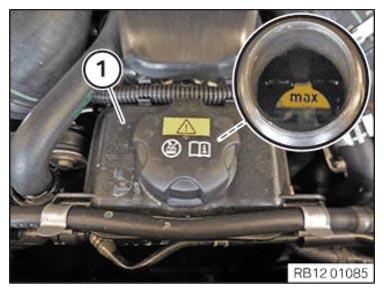

Top up the coolant in the coolant expansion tank (1) for the low-temperature coolant circuit up to the maximum mark .

Courtesy of BMW OF NORTH AMERICA, INC.
Shut sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.
