Install the spring strut

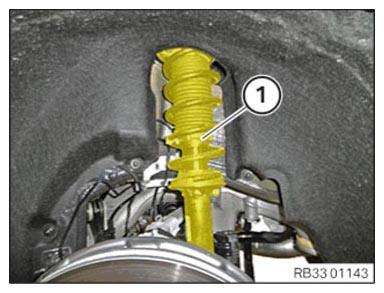

Feed in and position the spring strut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

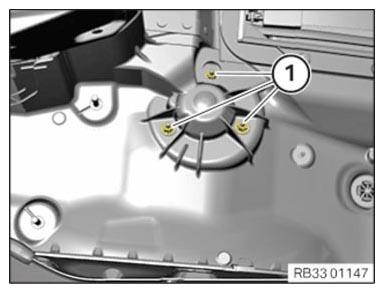

Replace nuts (1).
Parts: Nuts

Tighten nuts (1).

TIGHTENING TORQUES SPECIFICATION

Rear spring strut to body
M8 Replace nut.	tightening torque	28 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
