Install the right spring strut holder

NOTE: Description is for left component only. Procedure on the right side is identical.

NOTE: TECHNICAL INFORMATION
Keep the connection of the spring strut holder to the spring strut clean and free from oil and grease.

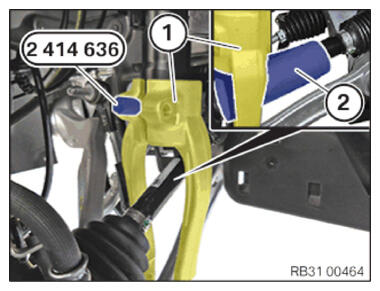

Expand spring strut holder (1) with special tool 2 414 636.
Protecting the output shaft from damage with a towel is mandatory (2).
Align spring strut holder (1) using the gap on the reference mark on the spring strut.
Insert and position spring strut holder (1) on spring strut.
The spring strut holder (1) must be pushed up to the limit position on the spring strut!
Remove the special tool 2 414 636.
Remove towel (2).

Courtesy of BMW OF NORTH AMERICA, INC.
- Checking the installation position of the spring strut holder

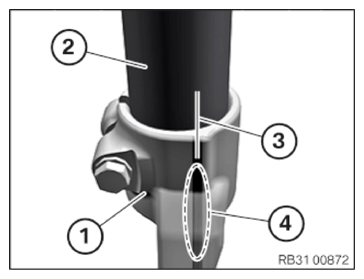

Check the installation position of the spring strut holder (1) for the spring strut (2).
The spring strut holder (1) must be correctly aligned to the spring strut (2) on the basis of the color coding (3).

The color coding (3) runs according to the extension of the elevation (4).

Courtesy of BMW OF NORTH AMERICA, INC.

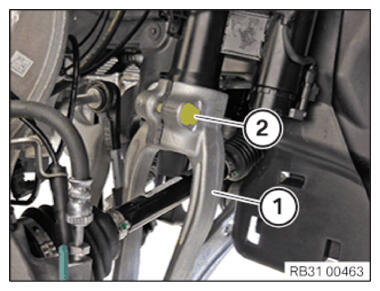

Replace the screw (2).
Parts: Screw

Screw the screw (2) into the spring strut holder (1) and tighten it.

TIGHTENING TORQUE SPECIFICATIONS

Spring strut holder on front spring strut
M10 Replace screw.	Joining torque	42 Nm
M10 Replace screw.	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION

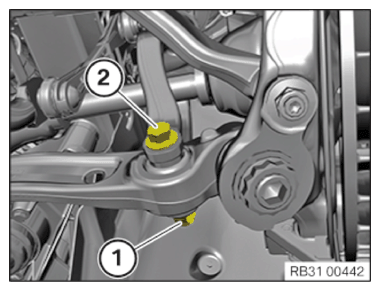

Tighten the screw connection in the NORMAL POSITION .

Tighten the nut (1) in the NORMAL POSITION .

TIGHTENING TORQUE SPECIFICATIONS

Bottom wishbone on spring strut holder
M14 Replace screw and nut. Tighten screw connection in normal position!	Joining torque	165 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

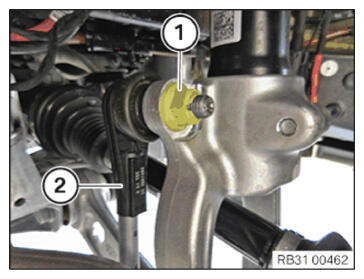

Tighten nut (1).

NOTE: Counter-hold at the Torx socket.

TIGHTENING TORQUE SPECIFICATIONS

Anti-roll bar link on anti-roll bar/spring strut (air suspension)
M12 Replace nuts.	Tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
