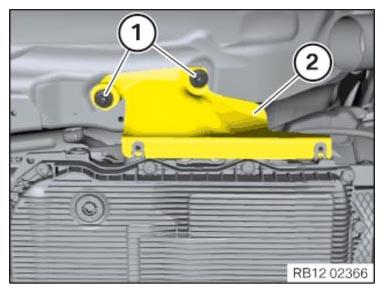

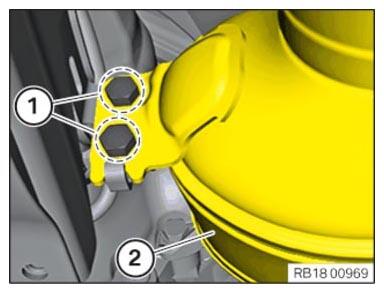

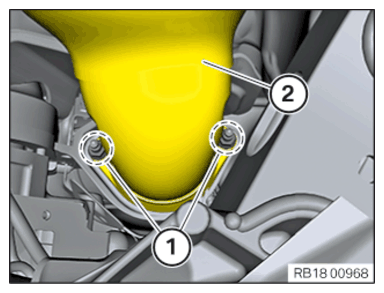

Install right heat shield

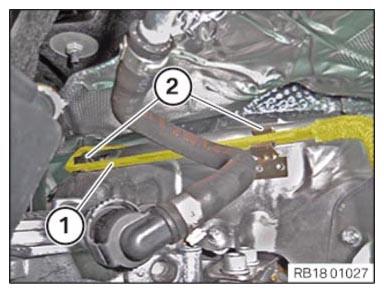

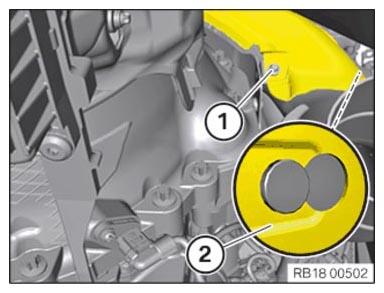

- Thread in right heat shield (2) and connect with the other heat shield.
- Tighten the screw (1) at the top of heat shield (2).
TIGHTENING TORQUE SPECIFICATIONS
| Heat protection plate | ||
|---|---|---|
| M6x16 | tightening torque | 10 Nm |
- Connect the heat shield (2) with the heat shield below.
- Tighten the screw (1) at the bottom of heat shield (2).
TIGHTENING TORQUE SPECIFICATIONS
| Heat protection plate | ||
|---|---|---|
| M6x16 | tightening torque | 10 Nm |
- Thread in right heat shield (2) and connect with the other heat shield.
- Tighten the screw (1) at the top of heat shield (2).TIGHTENING TORQUES SPECIFICATION
Heat protection plate M6x16 tightening torque 10 Nm - Connect the heat shield (2) with the heat shield below.
- Tighten the screw (1) at the bottom of heat shield (2).TIGHTENING TORQUES SPECIFICATION

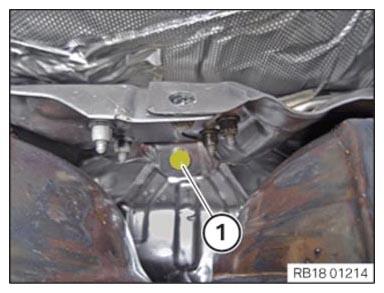

Heat protection plate M6x16 tightening torque 10 Nm - Tighten down screw (1).
- Version with S1DEA:
Feed in the pressure line (1) upwards.
Clip the pressure line (1) into the retaining clips (2).
- Version with S1DEA:
Feed in the pressure line (1) with gasoline particulate sensor upwards and position it.

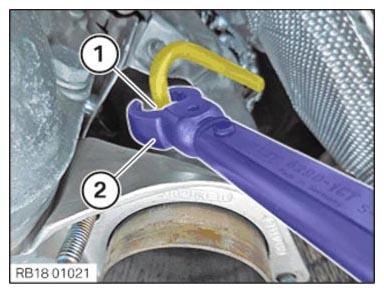

Tighten the pressure line (1) with an open ring wrench (2).
TIGHTENING TORQUES SPECIFICATION
| Pressure line to catalytic converter near engine | ||
|---|---|---|
| Pressure line | Tightening torque | 20 Nm |
Installing the gasoline particulate filter of cylinders 1 to 4
NOTE:
RISK OF DAMAGE
Damage to the gasoline particulate filter.
Forcibly removing, installing or dropping the gasoline particulate filter down will damage it.
Damage to the gasoline particulate filter.
Forcibly removing, installing or dropping the gasoline particulate filter down will damage it.
- Remove and install the gasoline particulate filter without damaging it and without applying external force.
- Avoid impacts/knocks to the gasoline particulate filter (e.g. by tools, falling down, hard contact with base).
NOTE:
TECHNICAL INFORMATION
After exchanging the gasoline particulate filter, and before delivering the vehicle to the customer, the registration of the gasoline particulate filter must be carried out!
After exchanging the gasoline particulate filter, and before delivering the vehicle to the customer, the registration of the gasoline particulate filter must be carried out!
- Replace gasket (1).
Parts: Seal

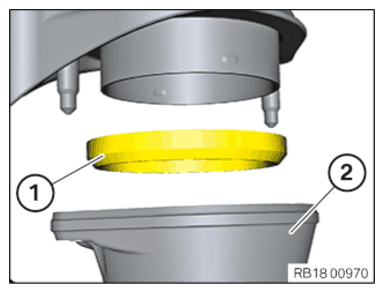

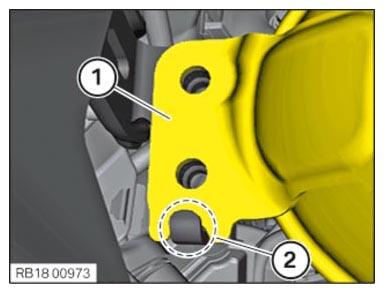

- Position seal (1) on the gasoline particulate filter (2).
- Feed in gasoline particulate filter (2) and position it.

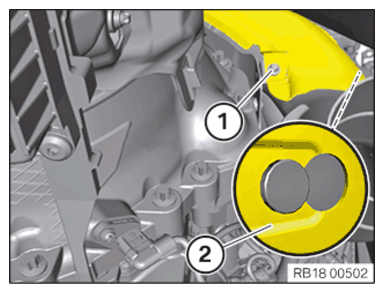

- Attach gasoline particulate filter (1) to lug (2) and secure it against falling down.
- Replace nuts (1).
Parts: Nuts
- Tighten nuts (1) on the gasoline particulate filter (2).TIGHTENING TORQUES SPECIFICATION
Gasoline particulate filter or catalytic converter near engine to the bottom of catalytic converter, snug torque Nut M8 Tightening torque 17 Nm - Tighten screws (1) on the gasoline particulate filter (2).TIGHTENING TORQUES SPECIFICATION
Gasoline particulate filter or catalytic converter near engine to the bottom of the transmission, snug torque M8x20 screw Tightening torque 8 Nm - Tighten nuts (1) on the gasoline particulate filter (2).TIGHTENING TORQUES SPECIFICATION
Gasoline particulate filter or catalytic converter near engine to the bottom of the catalytic converter, tightening torque Nut M8 Tightening torque 28 Nm - Tighten screws (1) on the gasoline particulate filter (2).TIGHTENING TORQUES SPECIFICATION

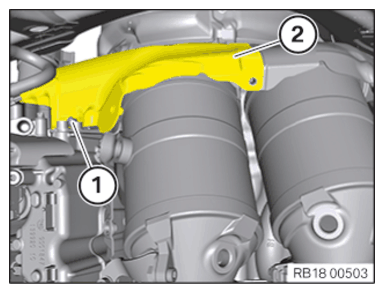

Gasoline particulate filter or catalytic converter near engine to the bottom of the transmission, tightening torque M8x20 screw Tightening torque 19 Nm - Install heat shield (2).
- Tighten nuts (1).TIGHTENING TORQUES SPECIFICATION
Heat shield at tunnel Nut tightening torque 2.5 Nm - Version A:

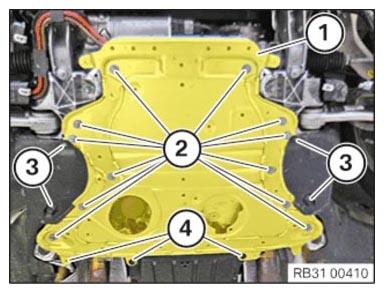

Position stiffening plate (1).
Replace screws (2).
Parts: Screws
Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Cover, steering unit screw Tightening torque 3 Nm - Tighten down screws (4).TIGHTENING TORQUES SPECIFICATION
Underbody protection screw Tightening torque 3 Nm - Version B:

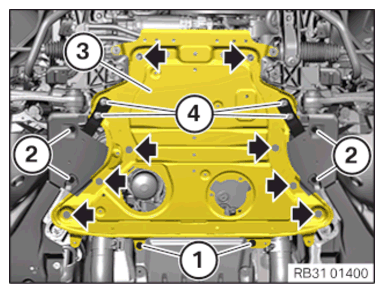

Insert stiffening plate (3) and position.
Replace the bolts (arrows).
Parts: Screws
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten down screws (2).TIGHTENING TORQUES SPECIFICATION
Cover, steering unit screw Tightening torque 3 Nm - Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Underbody protection screw Tightening torque 3 Nm - Replace screws (4).
Parts: Screws
- Tighten the screws (4).TIGHTENING TORQUE SPECIFICATIONS
Torsion strut to front subframe M8
Replace screws.Tightening torque 28 Nm Angle of rotation 135° - Version A:
Insert steering gear aggregate protective plate (1).
Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATIONUnderbody protection screw Tightening torque 3 Nm - Version B:
Replace screws (2).
Parts: Screws

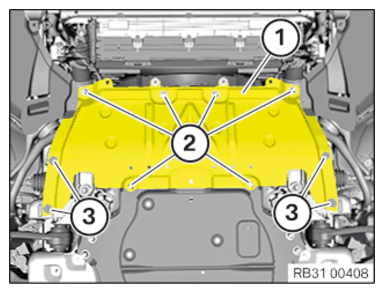

Position the front stiffening plate (1).
Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Cover, steering unit screw Tightening torque 3 Nm NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment. - Version A:
Insert and position the front stiffening plate (1).
Replace screws (2).
Parts: Screws
Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Cover, steering unit screw Tightening torque 3 Nm - Version B:

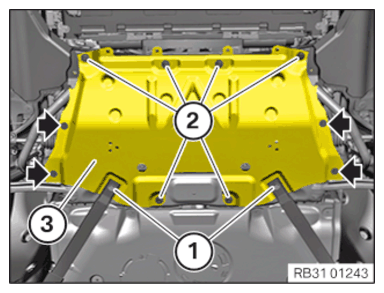

Feed in and position the front stiffening plate (3).
Replace screws (2).
Parts: Screws
Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten screws (arrows).TIGHTENING TORQUES SPECIFICATION
Cover, steering unit screw Tightening torque 3 Nm - Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Torsion strut to front subframe M10
Replace screws.Joining torque 56 Nm Angle of rotation 90° - Version C:
Guide in the underbody protection (1) of the steering gear and position it.
Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATIONUnderbody protection screw Tightening torque 3 Nm NOTE: The following step(s) must be performed if the listed component(s) is/are installed.NOTE: To provide a better overview: Schematic diagram with partially hidden components. - Version A:

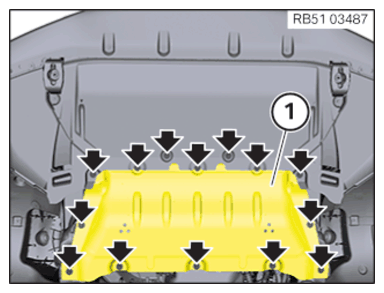

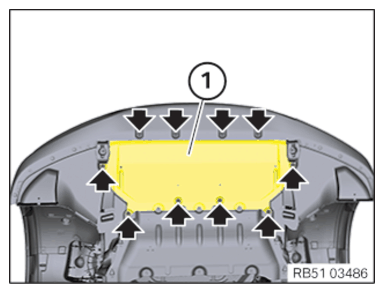

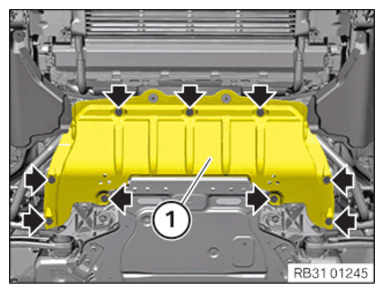

Insert the front underbody protection (1).
Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATIONUnderbody protection screw Tightening torque 3 Nm NOTE: The following step(s) must be performed if the listed component(s) is/are installed. - Version B:
Replace screws (2).
Parts: Screws

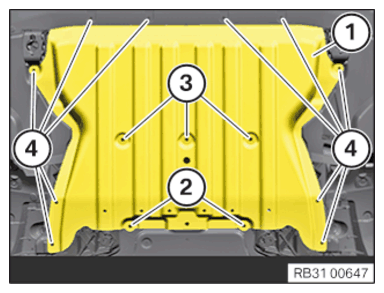

Position stiffening plate (1).
Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Thrust field to holder M6 Tightening torque 2.3 Nm - Tighten down screws (4).
TIGHTENING TORQUES SPECIFICATION
| Underbody protection | ||
|---|---|---|
| screw | Tightening torque | 3 Nm |
