Install left intake air plenum (engine or cylinder head removed)

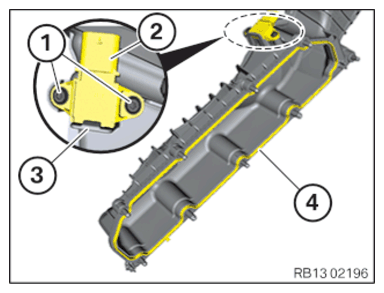

- Replace the seal (4).
Parts: Seal
- Only during replacement of the intake plenum:
Loosen screws (1).
Unlock pressure sensor (2) on the retaining tab (3).
Remove pressure sensor (2).
Position pressure sensor (2).
Retaining tab (3) must audibly lock in.
Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Pressure sensor | ||
|---|---|---|
| screw | Tightening torque | 3 Nm |

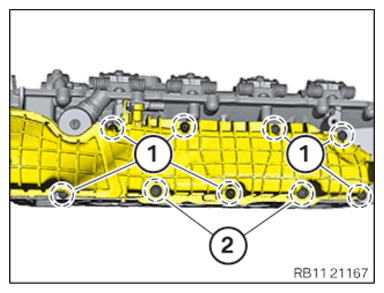

- Position the left intake plenum.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Intake plenum | ||
|---|---|---|
| M6 screw | Tightening torque | 10 Nm |
- Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONS
| Intake plenum | ||
|---|---|---|
| M8 screw | Tightening torque | 21.4 Nm |
