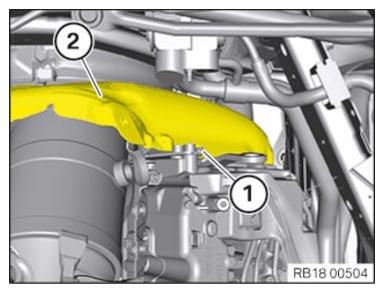

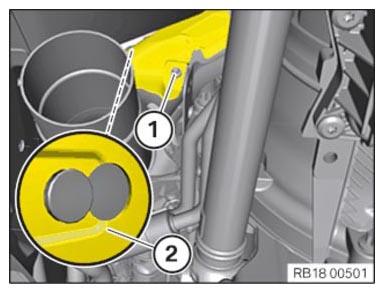

Install left heat shield
- Feed in left heat shield (2) and connect to the other heat shields.
- Tighten the screw (1) at the top of heat shield (2).
TIGHTENING TORQUE SPECIFICATIONS
| Heat protection plate | ||
|---|---|---|
| M6x16 | tightening torque | 10 Nm |
- Connect the heat shield (2) with the heat shield below.
- Tighten the screw (1) at the bottom of heat shield (2).
TIGHTENING TORQUE SPECIFICATIONS
| Heat protection plate | ||
|---|---|---|
| M6x16 | tightening torque | 10 Nm |
- Tighten down screw (1).

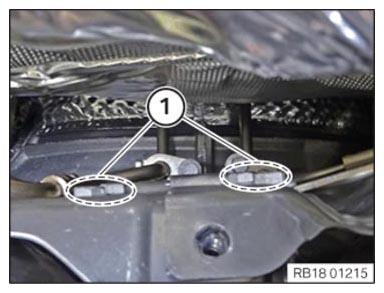

- Version with S1DFA:
Position the holder of the pressure lines.
Tighten screws in areas (1).
TIGHTENING TORQUE SPECIFICATIONS
| Pressure line lug to the lateral side of the heat shield | ||
|---|---|---|
| M6x16 screw | Tightening torque | 10 Nm |
- Feed in left heat shield (2) and connect to the other heat shields.
- Tighten the screw (1) at the top of heat shield (2).TIGHTENING TORQUE SPECIFICATIONS
Heat protection plate M6x16 Tightening torque 10 Nm - Connect the heat shield (2) with the heat shield below.
- Tighten the screw (1) at the bottom of heat shield (2).TIGHTENING TORQUE SPECIFICATIONS
Heat protection plate M6x16 Tightening torque 10 Nm - Tighten down screw (1).
- Version with S1DFA:
Position the holder of the pressure lines.
Tighten screws in areas (1).
TIGHTENING TORQUE SPECIFICATIONSPressure line lug to the lateral side of the heat shield M6x16 screw Tightening torque 10 Nm Installing the bottom catalytic converter of cylinders 5 to 8
NOTE: RISK OF DAMAGE
Damage to the gasoline particulate filter.
Forcibly removing, installing or dropping the gasoline particulate filter down will damage it.- Remove and install the gasoline particulate filter without damaging it and without applying external force.
- Avoid impacts/knocks to the gasoline particulate filter (e.g. by tools, falling down, hard contact with base).
NOTE: TECHNICAL INFORMATION
After exchanging the gasoline particulate filter, and before delivering the vehicle to the customer, the registration of the gasoline particulate filter must be carried out! - Replace gasket (1).
Parts: Seal

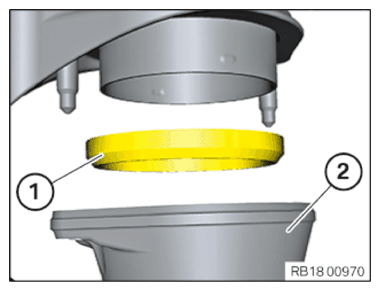

- Position seal (1) on bottom catalytic converter near engine (2).
- Feed in and position bottom catalytic converter near engine (2).

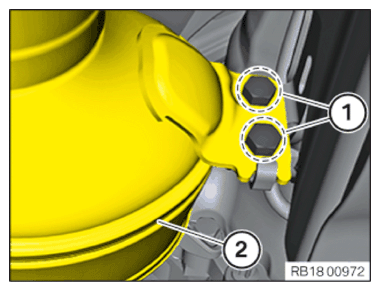

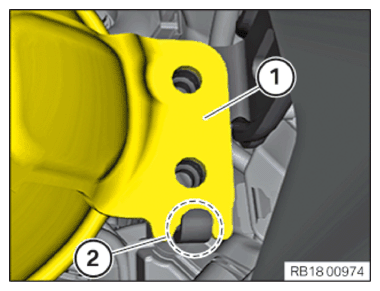

- Attach bottom catalytic converter near engine (1) to lug (2) and secure against falling down.

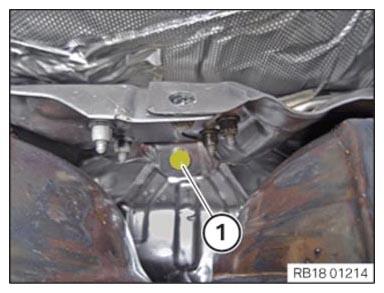

- Replace nuts (1).
Parts: Nuts

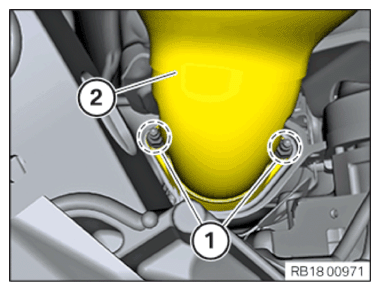

- Tighten nuts (1) on bottom catalytic converter near engine (2).TIGHTENING TORQUE SPECIFICATIONS
Gasoline particulate filter or catalytic converter near engine to the bottom of catalytic converter, snug torque Nut M8 Tightening torque 17 Nm - Tighten screws (1) on bottom catalytic converter near engine (2).TIGHTENING TORQUE SPECIFICATIONS
Gasoline particulate filter or catalytic converter near engine to the bottom of the transmission, snug torque M8x20 screw Tightening torque 8 Nm - Tighten nuts (1) on bottom catalytic converter near engine (2).TIGHTENING TORQUE SPECIFICATIONS
Gasoline particulate filter or catalytic converter near engine to the bottom of the catalytic converter, tightening torque Nut M8 Tightening torque 28 Nm - Tighten screws (1) on bottom catalytic converter near engine (2).TIGHTENING TORQUE SPECIFICATIONS

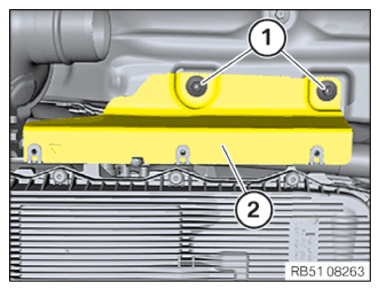

Gasoline particulate filter or catalytic converter near engine to the bottom of the transmission, tightening torque M8x20 screw Tightening torque 19 Nm - Install heat shield (2).
- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATIONS
Heat shield at tunnel Nut Tightening torque 2.5 Nm - Version A:

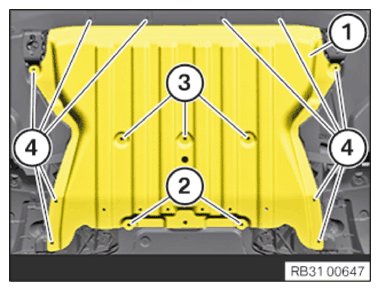

Position stiffening plate (1).

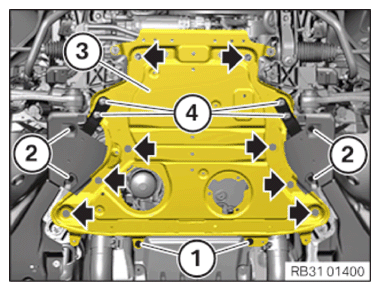

Replace screws (2).
Parts: Screws
Tighten down screws (2).
Tighten down screws (3).
TIGHTENING TORQUE SPECIFICATIONSCover, steering unit screw Tightening torque 3 Nm - Tighten down screws (4).TIGHTENING TORQUE SPECIFICATIONS
Underbody protection screw Tightening torque 3 Nm - Version B:
Insert stiffening plate (3) and position.
Replace the bolts (arrows).
Parts: Screws
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten down screws (2).TIGHTENING TORQUE SPECIFICATIONS
Cover, steering unit screw Tightening torque 3 Nm - Tighten down screws (1).TIGHTENING TORQUE SPECIFICATIONS
Underbody protection screw Tightening torque 3 Nm - Replace screws (4).
Parts: Screws
- Tighten the screws (4).TIGHTENING TORQUE SPECIFICATIONS
Torsion strut to front subframe M8
Replace screws.Tightening torque 28 Nm Angle of rotation 135° - Version A:
Insert steering gear aggregate protective plate (1).
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONSUnderbody protection screw Tightening torque 3 Nm - Version B:

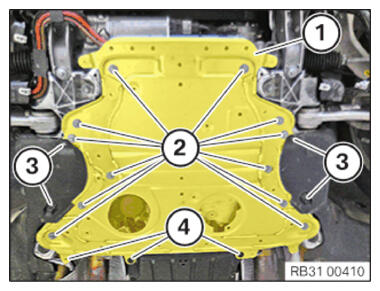

Replace screws (2).
Parts: Screws
Position the front stiffening plate (1).
Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten down screws (3).TIGHTENING TORQUE SPECIFICATIONS
Cover, steering unit screw Tightening torque 3 Nm NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment. - Version A:

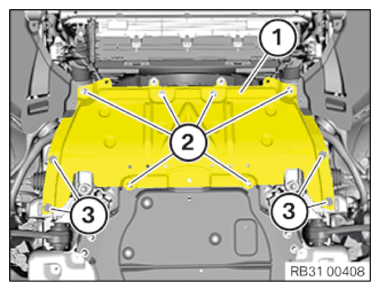

Insert and position the front stiffening plate (1).
Replace screws (2).
Parts: Screws
Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten down screws (3).TIGHTENING TORQUE SPECIFICATIONS
Cover, steering unit screw Tightening torque 3 Nm - Version B:

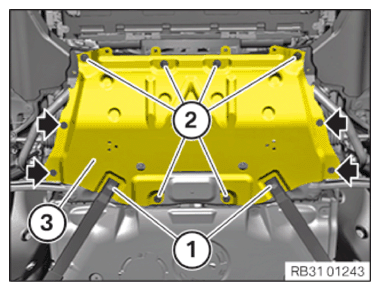

Feed in and position the front stiffening plate (3).
Replace screws (2).
Parts: Screws
Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten screws (arrows).TIGHTENING TORQUE SPECIFICATIONS
Cover, steering unit screw Tightening torque 3 Nm - Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Torsion strut to front subframe M10
Replace screws.Joining torque 56 Nm Angle of rotation 90° - Version C:

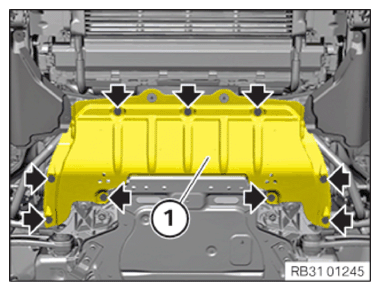

Guide in and position underbody protection (1) of the steering gear.
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONSUnderbody protection screw Tightening torque 3 Nm NOTE: The following step(s) must be performed if the listed component(s) is/are installed.NOTE: To provide a better overview: Schematic diagram with partially hidden components. - Version A:

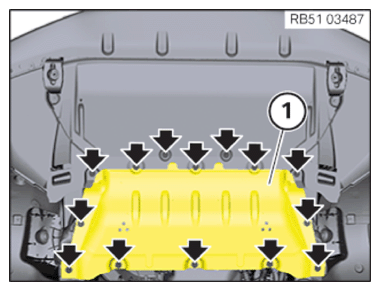

Insert the front underbody protection (1).
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONSUnderbody protection screw Tightening torque 3 Nm NOTE: The following step(s) must be performed if the listed component(s) is/are installed. - Version B:
Replace screws (2).
Parts: Screws
Position stiffening plate (1).
Tighten down screws (2).
TIGHTENING TORQUE SPECIFICATIONSThrust field to front axle support M8
Replace screws.Joining torque 25 Nm Angle of rotation 70° - Tighten down screws (3).TIGHTENING TORQUE SPECIFICATIONS
Thrust field to holder M6 Tightening torque 2.3 Nm - Tighten down screws (4).TIGHTENING TORQUE SPECIFICATIONS
Underbody protection screw Tightening torque 3 Nm - Version A (G14/G15/G16):

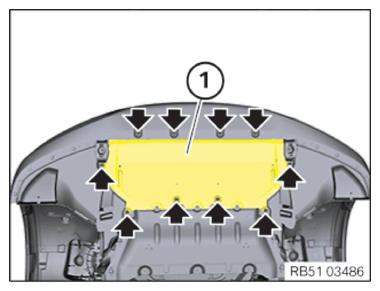

Guide the front underbody protection (1) in and position it.
Tighten screws (arrows).
TIGHTENING TORQUE SPECIFICATIONSUnderbody protection screw Tightening torque 3 Nm - Version B (G14/G15/G16):

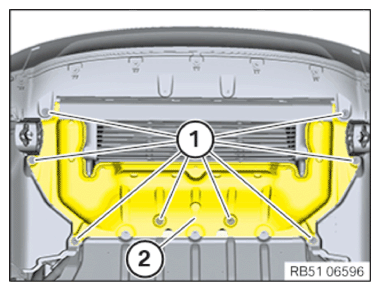

Guide the front underbody protection (2) in and position it.
Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONSUnderbody protection screw Tightening torque 3 Nm
