Install ignition coils of cylinder bank 1
Precondition
Ignition is switched off.
NOTE:
RISK OF DAMAGE
Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.
Damage to the ignition coil.
The silicone hose of the ignition coil must not be contaminated by fuel as this can lead to failure of the ignition coil.
- When working on the fuel system, cover the ignition coils with suitable materials and remove where required.
- Do not oil or grease the silicone tube of the spark plug socket. Do not use any protection or maintenance products (e.g. silicone spray, rubber care products, rust remover, etc.).
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

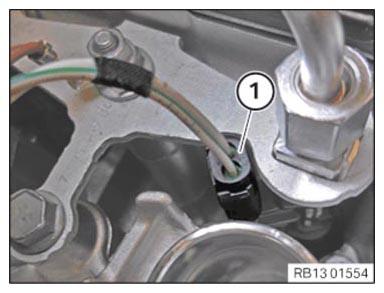

- Check all connectors (1) on the injectors again to ensure they are correctly fitted.
- Check that all connectors are plugged in correctly.

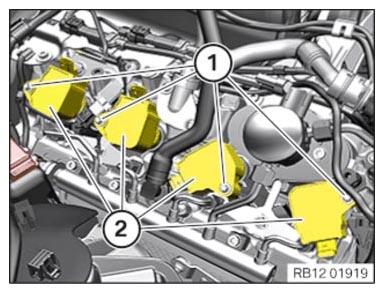

- Feed in the ignition coils (2) and install them.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Ignition coil | ||
|---|---|---|
| screw | Tightening torque | 8 Nm |

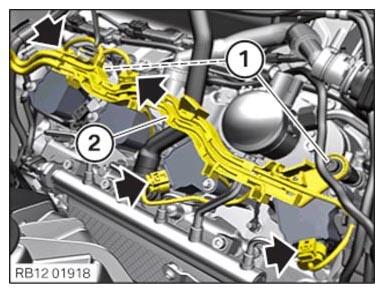

- Feed in and install the cable clip (2).
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Wiring harness on the cylinder head cover | ||
|---|---|---|
| M6x16 screw | Tightening torque | 10 Nm |
| Nut M6 | Tightening torque | 10 Nm |
- Connect and lock connectors (arrows).
The connectors (arrows) must audibly engage.

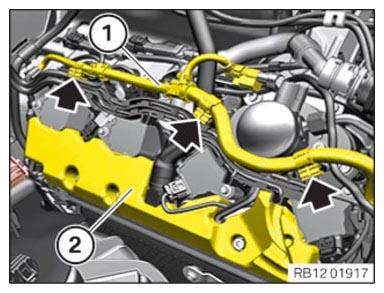

- Guide in and install cover (2).
- Insert and install cable (1).
- Secure the clamps (arrows).
