Detaching coolant hoses from the front axle support
Detaching coolant hoses from the front axle support
Detach all coolant hoses from the front axle support.

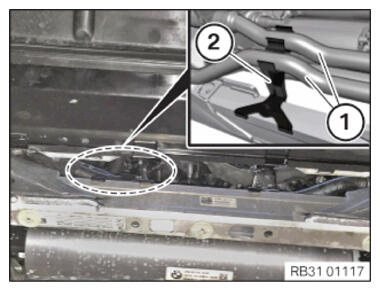

Release the coolant hoses (1) from the holder (2).
Courtesy of BMW OF NORTH AMERICA, INC.

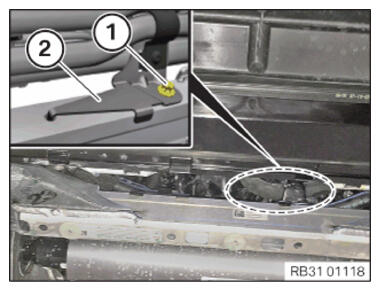

Loosen screw (1).
Release the holder (2) from the front subframe.
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
Perform the steps on the right and left side.

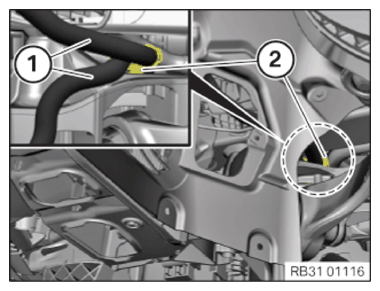

Release the coolant hoses (1) from the holder (2).
Courtesy of BMW OF NORTH AMERICA, INC.
