Checking the position of the intake camshaft

Check

• Check position of the intake camshaft on the respective cylinders.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

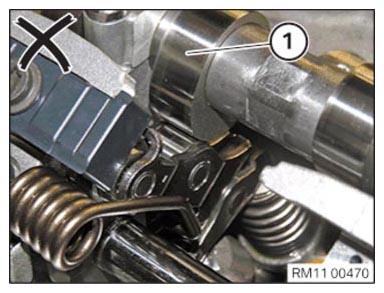

» Cam (1) of the intake camshaft runs on the intermediate lever.

Measure

• Continue to turn the engine at the vibration damper with the special tool 0 493 380 (11 6 480) in the direction of engine rotation.
