Shifting vehicle into design position
- Lay weights in the area of the spring strut until the vehicle ride height is within the tolerance!
TECHNICAL DATA SPECIFICATION
| Tolerance for ride height at design level | ||
|---|---|---|
| Tolerance for setpoint value | max. 2 mm | |
| Difference between left and right | max. 2 mm | |

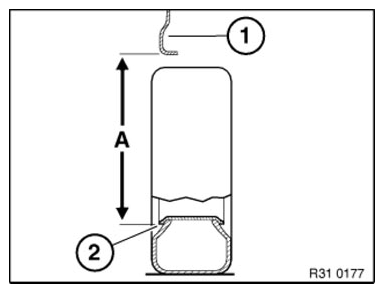

- Measuring vehicle ride height (A): (1) Attach the tape measure to the bottom rim flange (2) and measure the distance to the lower wheel arch edge.
