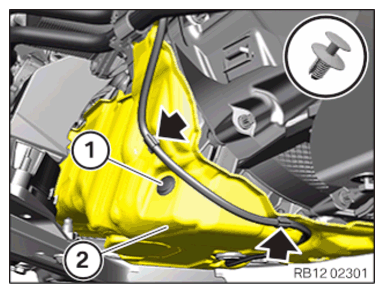

Securing the oil sump acoustic cover

• Position the acoustic cover (2).
• Fasten expanding rivet (1).
• Secure the clamps (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

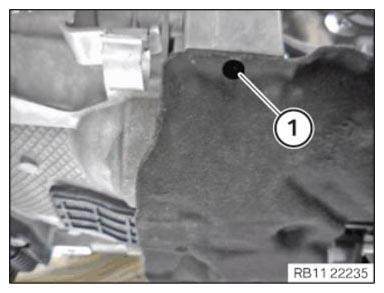

• Check the christmas tree clip (1) for damage, replace if necessary.

  Parts:  Fir tree clip

  Courtesy of BMW OF NORTH AMERICA, INC.

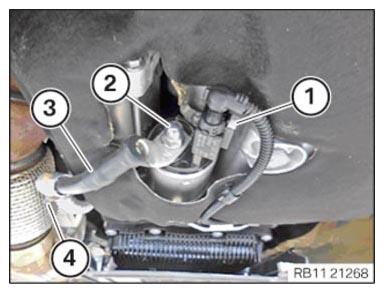

• Connect and lock the connector (1).
• Make sure the connector (1) engages audibly.
• Insert and install the positive battery cable (3).
• Secure positive battery cable (3) at the clamp (4).
• Tighten the nut (2) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

• Route the positive battery cable without abrasions and do not trap.

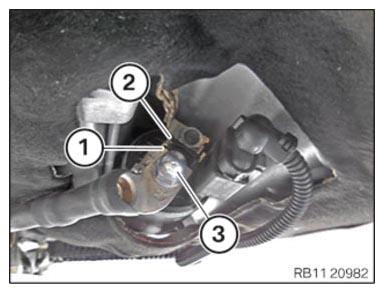

• Attach the positive battery cable (1) correctly  to anti-twist lock (2).
• Tighten nut (3).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUES SPECIFICATION

Battery positive lead to starter
M8	Tightening torque	13.5 Nm
