Replacing the radial shaft seals

Replacing the left radial shaft seal

NOTE: TECHNICAL INFORMATION
Radial shaft seal ring are equipped with an installation protection ring. The installation protection ring is used to protect the sealing lip when installing the output shaft.

Remove the radial shaft seal

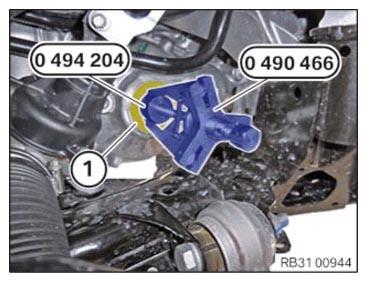

Pull out and remove the radial shaft seal (1) with the special tools 0 490 466 (00 5 010) and 0 494 204 (24 2 353).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace radial shaft seal (2).
Parts: Radial shaft seal

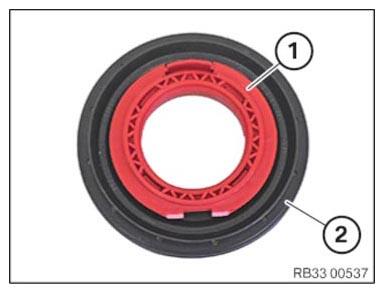

Remove the assembly protection ring (1) from the radial shaft sealing ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the radial shaft seal
Coat the housing of the sheet metal flange of the radial shaft seal with the approved front differential fluid.

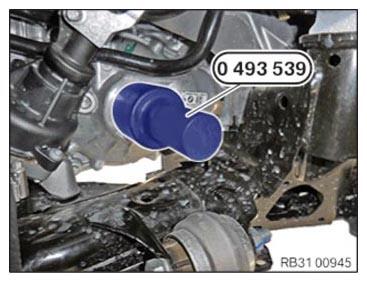

Drive in the radial shaft seal to the stop using the special tool 0 493 539 (31 5 130) .
Remove special tool 0 493 539 (31 5 130) .

Courtesy of BMW OF NORTH AMERICA, INC.
Install the installation protection ring (1) in the radial shaft seal (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the radial shaft seal of the bearing bracket

Removing radial shaft seal of the bearing bracket

Prepare the special tool 0 490 466 (00 5 010) with the special tools 0 494 649 (21 2 230) (without the screw) and 0 493 384 (11 1 212).

Courtesy of BMW OF NORTH AMERICA, INC.

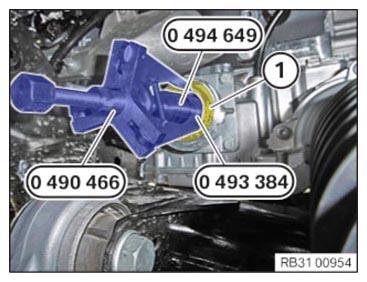

Pull out and remove the radial shaft seal (1) with the special tools 0 490 466 (00 5 010) , 0 494 649 (21 2 230) and 0 493 384 (11 1 212).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace radial shaft seal (2).
Parts: Radial shaft seal
Remove the installation protection ring (1) from the new radial shaft seal (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing radial shaft seal of the bearing bracket
Coat the housing of the sheet metal flange of the radial shaft seal with the approved front differential fluid.

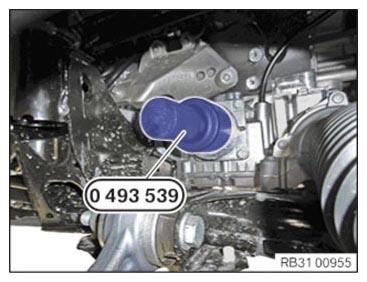

Drive in the radial shaft seal to the stop using the special tool 0 493 539 (31 5 130) .
Remove special tool 0 493 539 (31 5 130) .

Courtesy of BMW OF NORTH AMERICA, INC.
Install the installation protection ring (1) in the radial shaft seal (2).

Courtesy of BMW OF NORTH AMERICA, INC.
