Removing upper oil sump section, engine removed

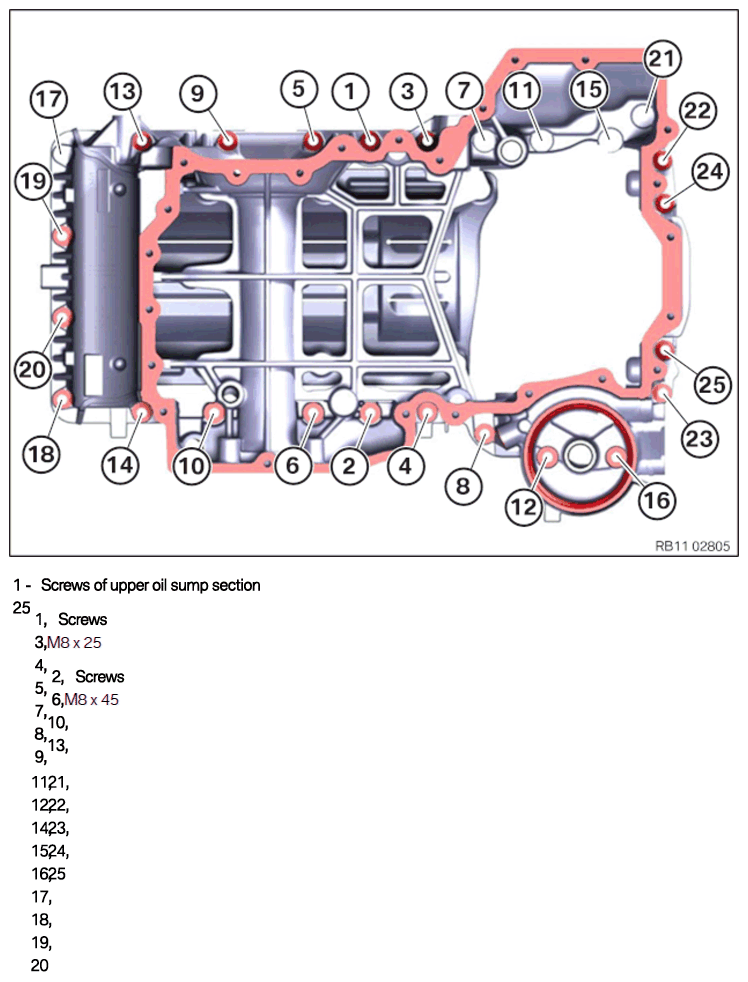

Screw connection of upper oil sump section

Fig 1: Upper Oil Sump Section Screws Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

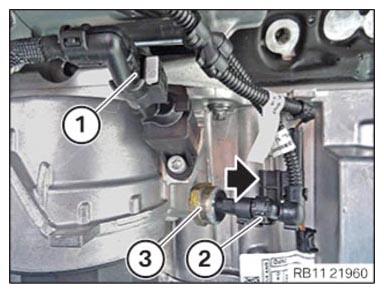

• Unlock plug connection (1) and disconnect.
• Unlock plug connection (2) and disconnect.
• Release, feed out and remove the oil pressure sensor (3).
• Loosen the clamp (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release the cable (1) from the clamp (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

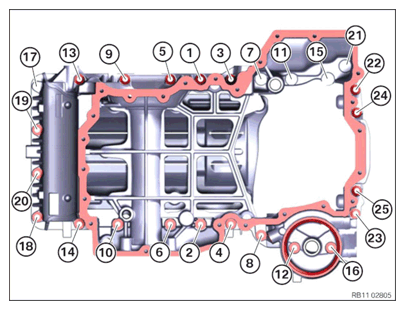

• Loosen screw (25) to (3).
  Fig 2: Upper Oil Sump Section Screws Loosening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
• Loosen screws (1) and (2).
• With the assistance of another person guide out the upper oil sump section (3) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
