Removing the right seat belt finisher strip
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the seat belt finisher strip

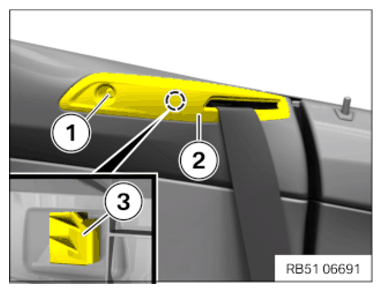

- Loosen screw (1).
- Release the seat belt finisher strip (2) from the detent (3) and remove from the side trim panel.

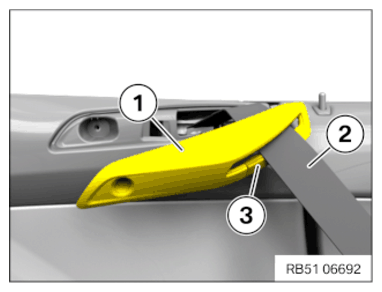

- Unclip clip (3) from behind and remove it from the seat belt finisher strip (1).
- Feed the safety belt (2) out of the seat belt finisher strip (1) and remove the seat belt finisher strip (1).
