Removing the door lock (when replacing door)

Remove front electric power windows

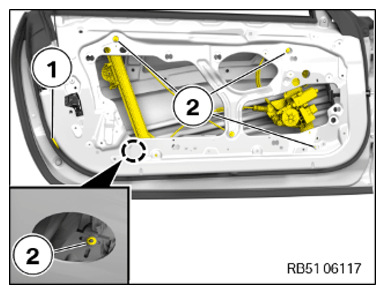

• Remove plug (1).
• Loosen nuts (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

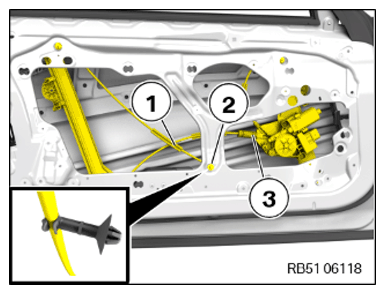

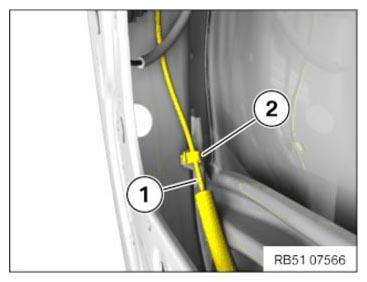

• Unclip the Bowden cable (1) from the clip (2).
• Feed out the front power electric windows (3) through the door opening.

Courtesy of BMW OF NORTH AMERICA, INC.

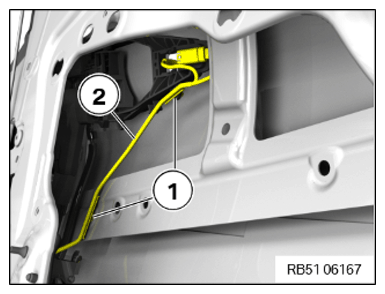

• Unclip the clips (1) and the place the wiring harness (2) aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

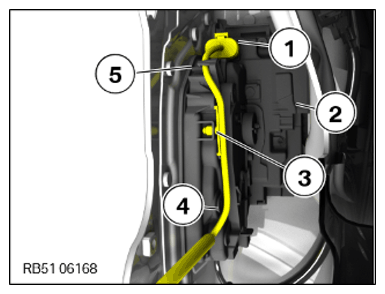

• Unlock and disconnect the electrical plug connection (1) on the door lock (2).
• Unclip clip (3).
• Feed the vehicle wiring harness (4) out of the guide (5) and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• On equipment specification with soft-close automatic:

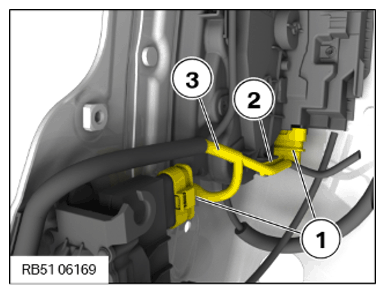

• Unlock and disconnect plug connections (1).
• Unclip the clip (2) and the place the wiring harness (3) aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• On equipment specification with soft-close automatic:

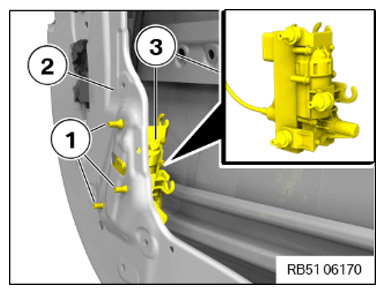

• Release the rubber mount (1) on the door (2).
• Feed the soft-close motor (3) with the rubber mounts (1) out of the door (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

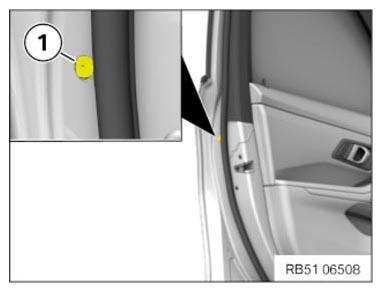

• Loosen screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

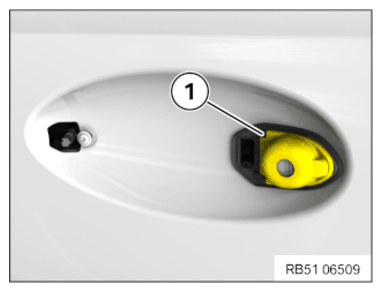

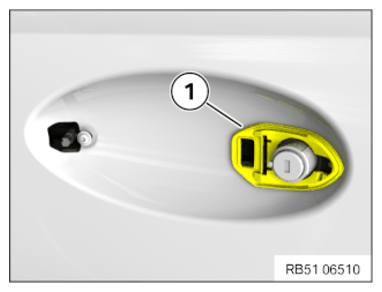

• Remove the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

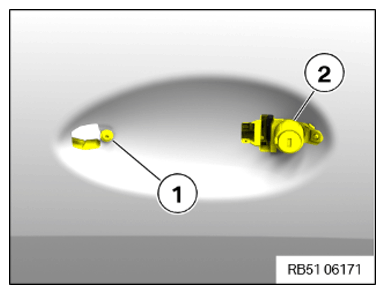

• Remove seal (1) for the external door handle.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Slide the outside door handle support (2) forwards and feed it out inwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

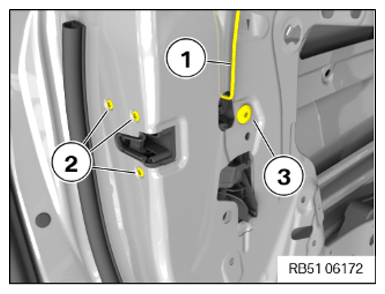

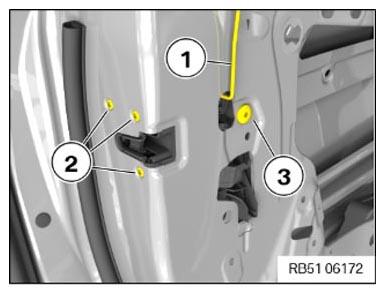

• Unclip locking rod (1).
• Loosen screws (2) and (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

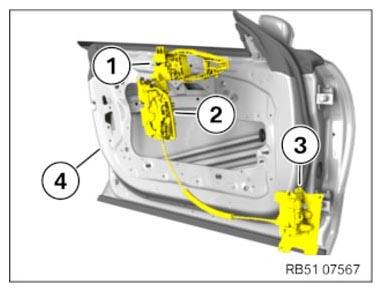

• On equipment specification with soft-close automatic:

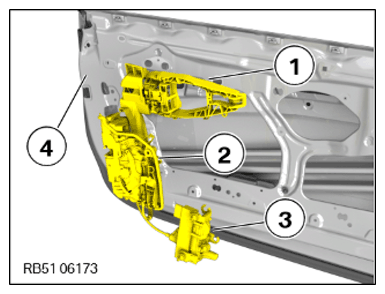

• Feed the outside door handle support (1) with the door lock (2) and the soft-close automatic (3) out of the door (4).

  Make sure that the seal of the door lock (2) is not damaged.

  Courtesy of BMW OF NORTH AMERICA, INC.

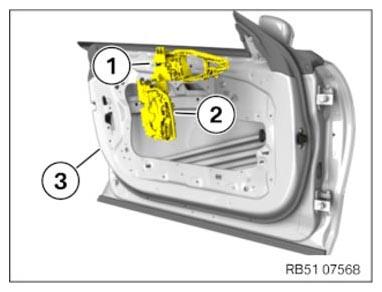

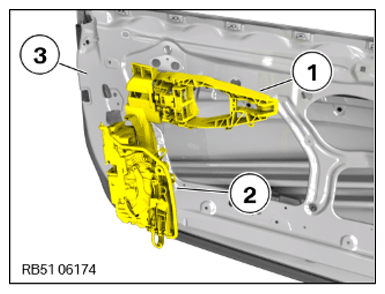

• Feed the outside door handle support (1) with the door lock (2) out of the door (3).

  Make sure that the seal of the door lock (2) is not damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove front electric power windows

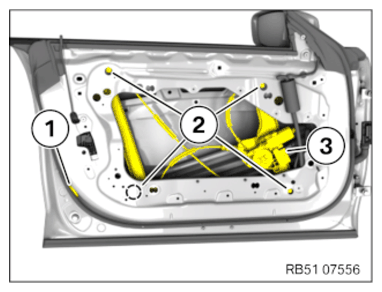

• Remove plug (1).
• Loosen nuts (2).
• Feed out the front power electric windows (3) through the door opening.

Courtesy of BMW OF NORTH AMERICA, INC.

Remove door lock

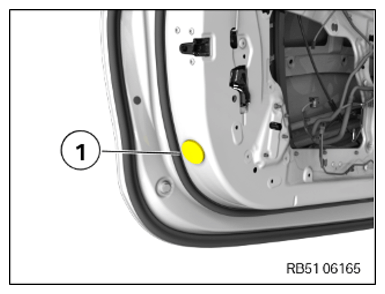

• Remove plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

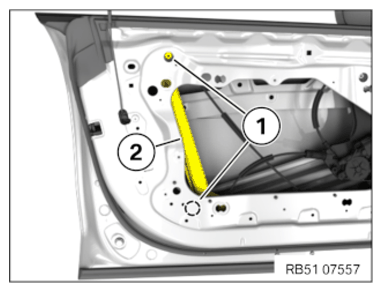

• Loosen the nuts (1) and carefully push the window regulator (2) to the side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip the clips (1) and the place the wiring harness (2) aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect the electrical plug connection (1) on the door lock (2).
• Unclip clip (3).
• Feed the vehicle wiring harness (4) out of the guide (5) and set it aside.

  Courtesy of BMW OF NORTH AMERICA, INC.

• On equipment specification with soft-close automatic:
• Unlock and disconnect plug connections (1).
• Unclip the clip (2) and the place the wiring harness (3) aside.

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment specification with soft-close automatic function for doors: removing soft-close automatic function for doors

• Detach Bowden cable (1) from holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove seal (1) for the external door handle.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screw (1).
• Slide the outside door handle support (2) forwards and feed it out inwards.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unclip locking rod (1).
• Loosen screws (2) and (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

• For version with soft-close automatic for doors:
• Feed the outside door handle support (1) with the door lock (2) and the soft-close mechanism for doors (3) out of the door (4).

  Make sure that the seal of the door lock (2) is not damaged.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the outside door handle support (1) with the door lock (2) out of the door (3).

  Make sure that the seal of the door lock (2) is not damaged.

Courtesy of BMW OF NORTH AMERICA, INC.
