Removing the center firewall lower part

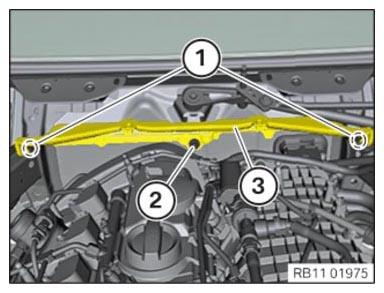

Loosen screws (1).
Loosen nut (2).
Remove the center cowl lower part (3).

G15685246

Courtesy of BMW OF NORTH AMERICA, INC.
