Removing the LED module on the center console

NOTE: Description is for left component only. Procedure on the right side is identical.

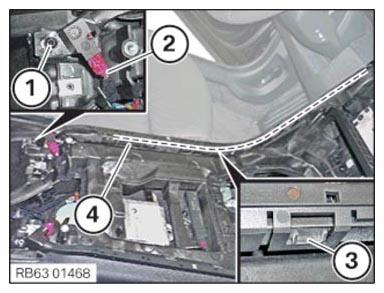

• Loosen screw (1).
• Disconnect the connector (2).
• Release all detents (3) and remove the fiber optic cable (4).

Courtesy of BMW OF NORTH AMERICA, INC.
