Remove power window switch (door trim panel removed)
Remove power window switch (door trim panel removed)

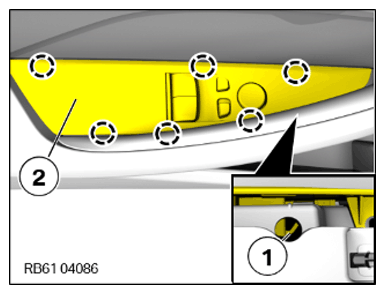

Unscrew detent (1) with suitable tool.
Release power window switch (2) using suitable tool at all marked detents.
Courtesy of BMW OF NORTH AMERICA, INC.

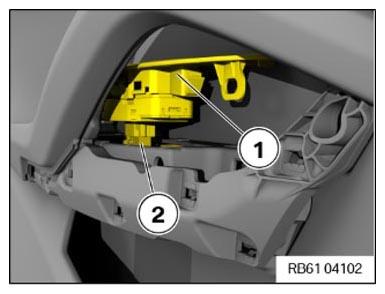

Unlock plug connection (2) and disconnect.
Remove power window switch (1).
Courtesy of BMW OF NORTH AMERICA, INC.
