Preserving the door

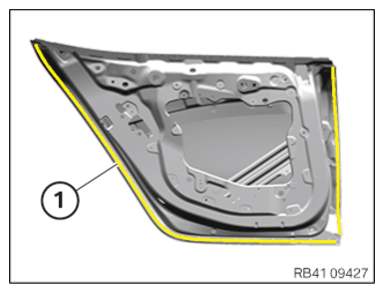

- The inner door panel is welded with the door outer skin in the area (1).
The weld seam must be protected from corrosion by means of cavity preservation.
- Preserve the inner door panel in the area of the weld seam (1) all around and remove the cavity preservation that has escaped.
NOTE:
To provide a better overview: Shown without door outer skin.

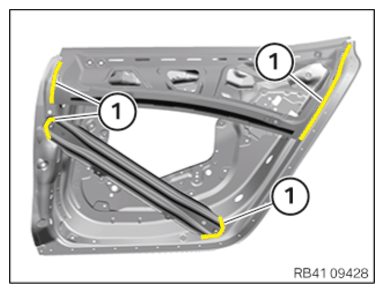

- Preserve the weld seams (1) between the reinforcements and inner door panel.
