Pinchweld scraper set
Order number: 81 62 0 410 436

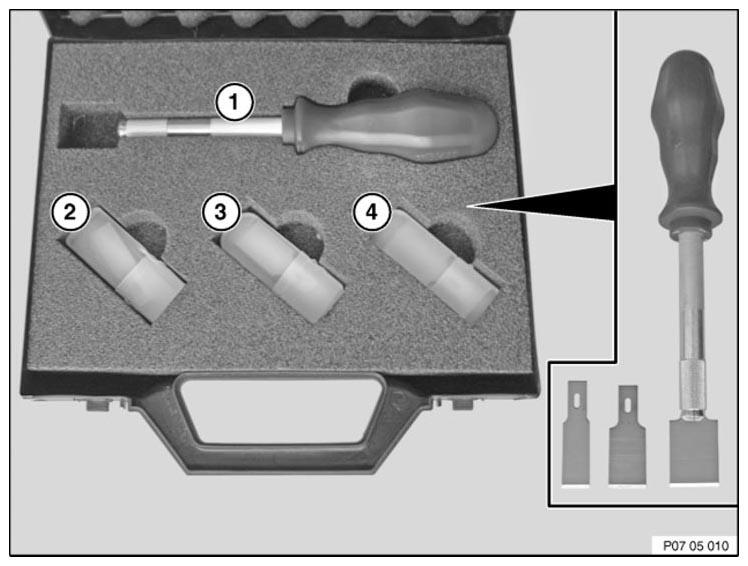

The pinchweld scraper set is delivered in-case and consists of:
- Handgrip for mounting the individual blades
- Blade set; 10 pcs. with blade width 12 mm
- Blade set; 10 pcs with blade width 16 mm
- Blade set; 10 pcs with blade width 20 mm
The individual blades are inserted into the hand grip and mounted on a knurled screw. The blades can be ordered separately (10 pcs per packaging and width).
Dimensions/weight of case:
- Lengths 240 x width 210 x height 450 in mm
- Weight approx. 380 g
Individual parts for re-order:
| Order number | Designation |
|---|---|
| 8162 0 410 806 | Blade set 12 mm (10 pcs) |
| 8162 0 410 807 | Bladeset16mm (10pcs) |
| 8162 0 410 808 | Blade set 20 mm (10 pcs) |
