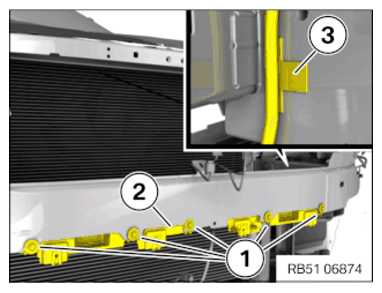

Partially detaching the wiring harness of the front end

• Loosen screws (1).
• Detach the cover (2) from the support for the front bumper cover.

  The cover (2) stays on the vehicle.

• Unclip the wiring harness of the front end (3) with all brackets from the support for the bumper cover.
