Installing the right seat belt finisher strip
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the seat belt finisher strip

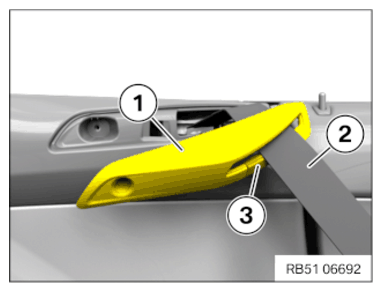

- Feed the seat belt (2) into the seat belt finisher strip (1).
- Clip the clip (3) into the seat belt finisher strip (1).

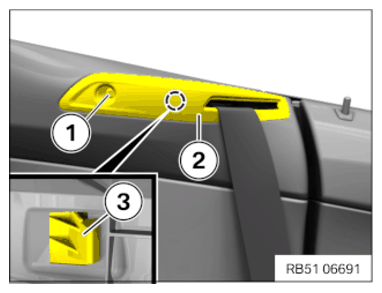

- Position the seat belt finisher strip (2) on the rear side trim panel and clip it into the detent (3).
- Replace the screw (1).
Part: Screw
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Seat belt finisher strip to angle bracket | ||
|---|---|---|
| Sheet metal screw 4.8x19 Replace screw. |
Tightening torque | 2.6 Nm |
