Installing the rear brake disc
- Thoroughly clean the contact surface of the wheel hub and remove traces of corrosion if necessary.
Irregularities in the contact surface can cause distortion in the brake disc!

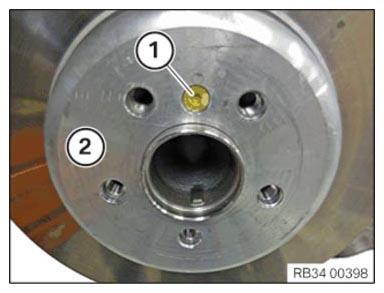

- Position the brake disc (2).
- Replace the screw (1).
Parts: Screw
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Brake disc to rear wheel hub | ||
|---|---|---|
| M8 Replace screw. |
Tightening torque | 16 Nm |
