Installing the illuminated right-hand front sill trim

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the illuminated front sill trim

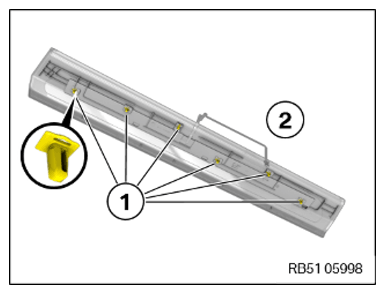

Check whether the clips (1) on the front illuminated sill trim (2) are missing or are damaged, replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

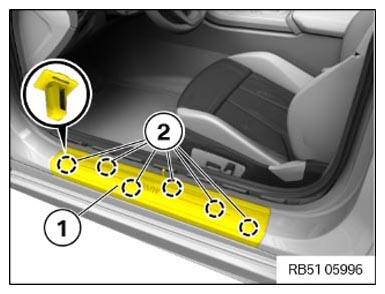

Position the front illuminated sill trim (1) and feed in the cable.
Clip in the front illuminated sill trim (1) with the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

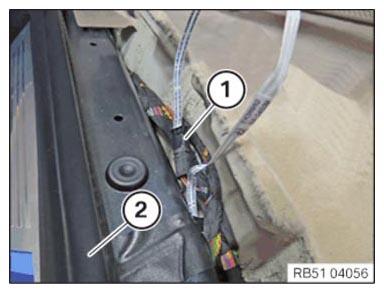

Connect plug (1).
Mount the edge protection seal (2) in area of the cable.

Courtesy of BMW OF NORTH AMERICA, INC.
