Installing the front brake caliper (braking system remains closed)

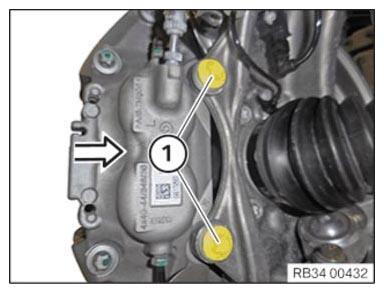

• Install the brake caliper in the arrow direction.
• Replace screws (1).

  Parts:  Screws

• Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Brake caliper/brake anchor plate at front swivel bearing
M12 Replace screw.	Tightening torque	130 Nm
