Installing the camber control arm

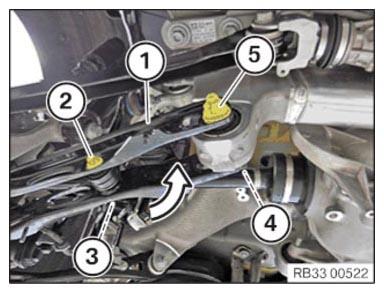

- Swivel the camber link (1) upward in the arrow direction.
- Replace the eccentric screw (4), the eccentric washer and the nut (5).
Parts: eccentric screw, eccentric washer, nut
- Insert the eccentric screw (4).
- Connect eccentric washer.
- Screw on the nut (5).
- Replace screw (2) and nut (3).
Parts: Bolt, nut
- Insert the screw (2).
- Screw on the nut (3).
NOTE:
TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .
Tighten the screw connection in the NORMAL POSITION .
- Tighten nut (3) in NORMAL POSITION .
TIGHTENING TORQUES SPECIFICATION
| Anti-roll bar link to camber control arm | ||
|---|---|---|
| M10 Replace screw and nut. Tighten in normal position. |
Joining torque | 56 Nm |
| Angle of rotation | 90° | |
- Tighten nut (5) in the NORMAL POSITION .
TIGHTENING TORQUES SPECIFICATION
| Camber control arm to rear axle support | ||
|---|---|---|
| M14 Replace bolt, nut and eccentric washer. Tighten in normal position. |
tightening torque | 175 Nm |
