Installing the air duct at the bottom

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

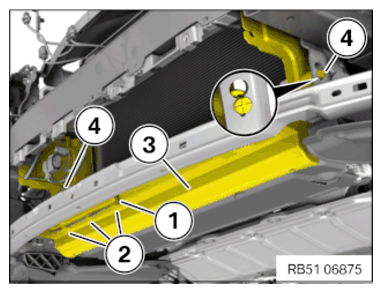

• Feed in the bottom air duct (3) from the bottom and position it.
• Hang the bottom air duct (3) in the guides (4).
• Hang the wiring harness (1) in the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The operations shown only for one side must be carried out on both sides.

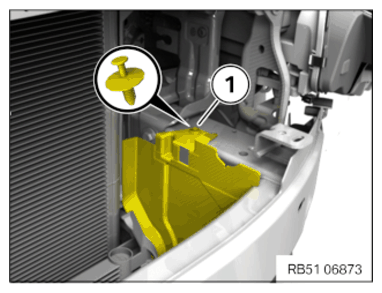

• Fasten expanding rivet (1).
