Installing the LED module on the center console

NOTE: Description is for left component only. Procedure on the right side is identical.

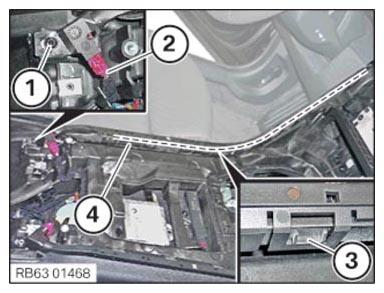

• Position the fiber optic cable (4) and engage in the detents (3).
• Connect plug (2).
• Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

LED to center console
Screw	tightening torque	1.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
