Install the rear right side trim panel

Install rear trim panel

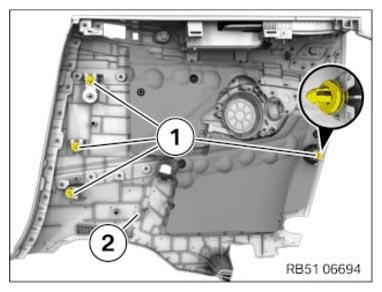

• Check the clips (1) on the side trim panel (2) for damage and replace, if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Partially installing the Bowden cable for the convertible top compartment lid

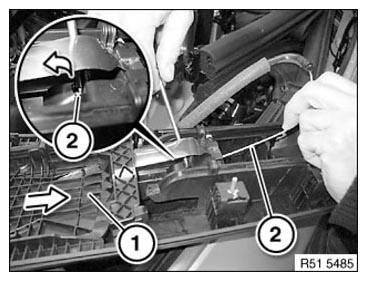

• Check the detents on the trim (1) for damage and replace if applicable.
• Clip Bowden cable (2) into trim (1) in the arrow direction.
  IMPORTANT: The Bowden cable (2) must snap in audibly by pulling in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

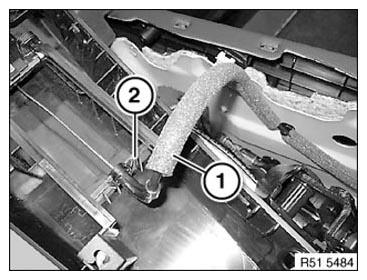

• Clip Bowden cable (1) into lock (2).

Courtesy of BMW OF NORTH AMERICA, INC.

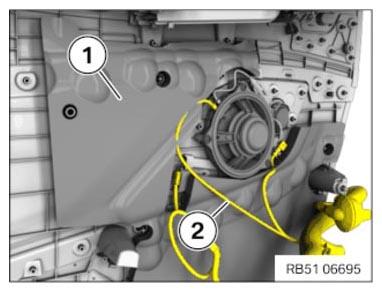

• Connect and lock all the connectors of the wiring harness (2) on the rear side trim panel (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

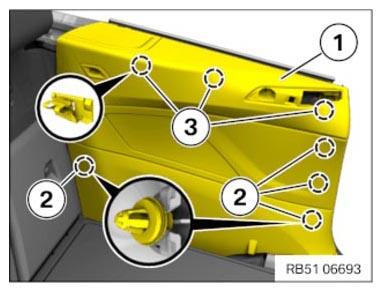

• Guide the safety belt into the rear side trim panel (1).
• Correctly position the rear side trim panel (1) and clip into the clamps (3).
• Clip in the rear side trim panel (1) with the clips (2).
• Feed the rear side trim panel (1) into the door weather strip.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

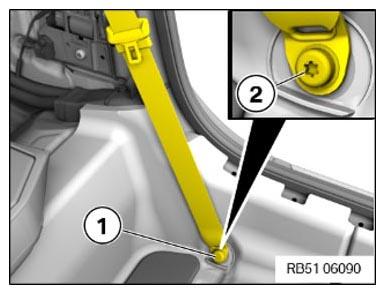

• Position the safety belt and tighten the screw (2).
  TIGHTENING TORQUES SPECIFICATION



  End lining to body
  screw	Tightening torque	42 Nm

• Install the protective cap (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (1).

  Part:  Screw

• Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Linkage aperture flap to connecting bracket
  Sheet metal screw 4.8x19 Replace screw.	Tightening torque	2.6 Nm

• Tighten nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.
