Install the left and right hood lock
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing hood lock

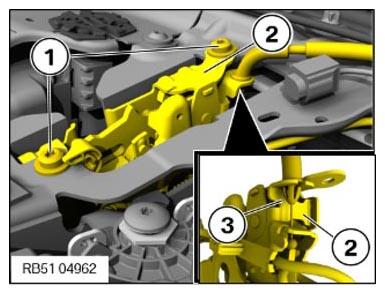

- Hook the cable linkage (3) into the hood lock (2).
- Feed in the hood lock (2).
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).TIGHTENING TORQUES SPECIFICATION
Hood lock Flat-head screw

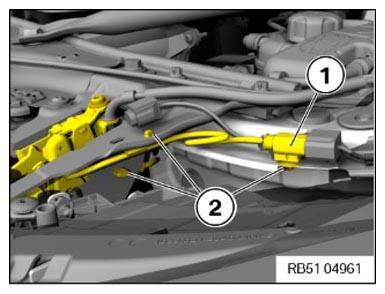

M6x20Tightening torque 8 Nm - Secure cable with the clips (2) to the hood lock.
- Connect connectors (1) and lock.
Activating the 48 V electrical system
Precondition
Ignition is switched off.
NOTE:
RISK OF DAMAGE
Damage to the 48-V battery
If a 48V battery that is disconnected from the electrical system is activated, the battery electronics will be damaged.
Damage to the 48-V battery
If a 48V battery that is disconnected from the electrical system is activated, the battery electronics will be damaged.
- Only ever activate the 48 V electrical system when the 48 V battery is fully connected up.

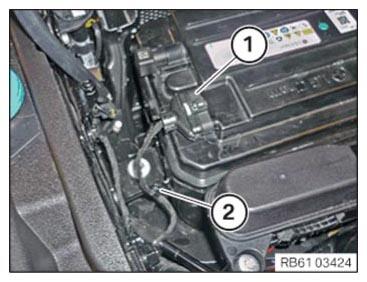

- Raise the battery ground cable.

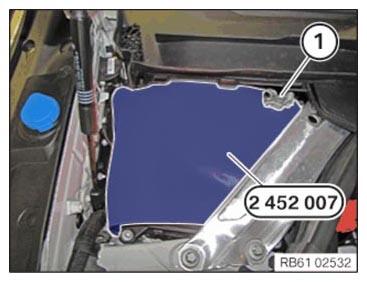

- Remove special tool 2 452 007.
- Release the negative battery cable of the 48-V battery from the attachment.

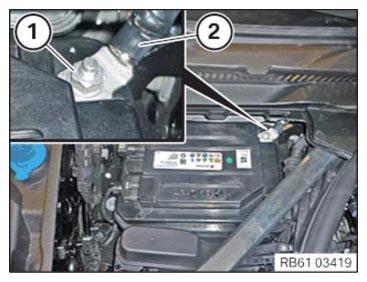

- Position the negative battery cable of the 48-V battery on the negative battery terminal.
- Tighten nut.TIGHTENING TORQUES SPECIFICATION
Negative battery cable to 48-V battery Nut M8 tightening torque 19 Nm - Connect the connector of the CAN bus and lock it.
- Clip in clip.

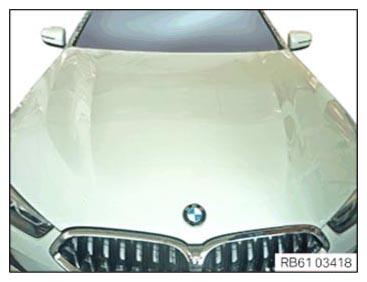

- Activate the 48 V electrical system by closing the hood.
Activation is automatic.
