Disconnecting the front active stabilizer

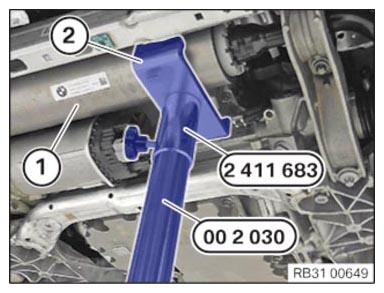

- Carefully support the active stabilizer (1) using the universal jack 0 490 133 (00 2 030)
, the special tool 2 411 683
and the adapter (U-profile) (2).
Use the adapter (U-profile) (2) from the set of special tools 2 184 136 .

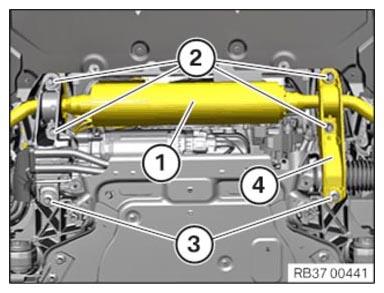

- Release screws (2) and (3) on the retainer of the active stabilizer.
- Remove the left retainer (4).
NOTE:
RISK OF DAMAGE
Failure to comply with the specification.
Component damage.
Failure to comply with the specification.
Component damage.
- All specifications must be observed and complied with.

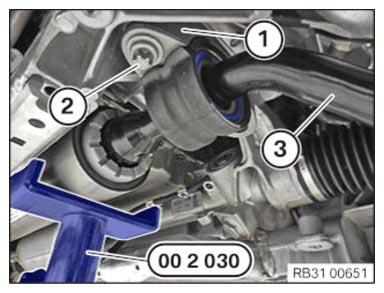

- Secure the upper section (1) of the anti-roll bar bracket at the right and left with the screw (2).
- Tighten screw (2) on the left and right hand-tight.
- Lower the active anti-roll bar (3) with the universal jack by a 0 490 133 (00 2 030) maximum of 20 mm .
