Disassembling all special tools

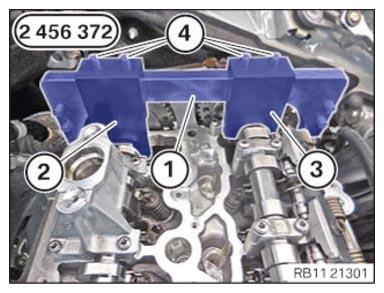

- Release screws (4) from the special tool set 2 456 372 .
- Guide the setting gauge 0.5° (2) out of the special tool 2 456 372 between the exhaust camshaft and the basic carrier (1) and remove.
- Guide the setting gauge 0.7° (3) out of the special tool 2 456 372
between the intake camshaft and the basic carrier (1) and remove.

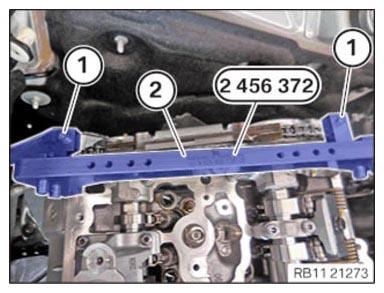

- Release screws (1) from the special tool set 2 456 372 .
- Guide the basic carrier (2) out of the special tool 2 456 372
and remove.

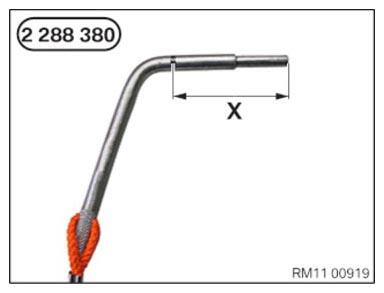

- Guide the special tool 2 288 380
out and remove.

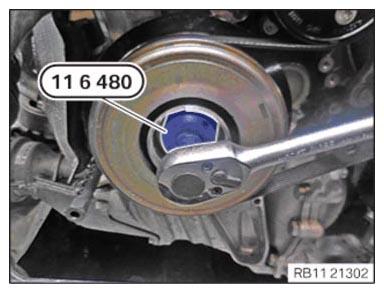

- Guide the special tool 0 493 380 (11 6 480)
out and remove.

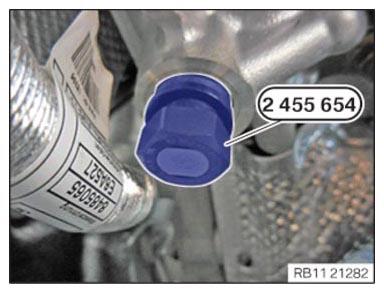

- Guide the special tool (1)2 455 654 out and remove.
