Attach the engine from the automatic transmission (lifting table)

NOTE: RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.

Use only the approved transmission oil.
Check the transmission oil level after completing the repair.

NOTE: RISK OF DAMAGE
Damage to the automatic transmission/impeller.
When disconnecting the engine and transmission, the torque converter can become loose! Failure to observe the correct installation positions of the torque converter may lead to damage to the impeller driver.

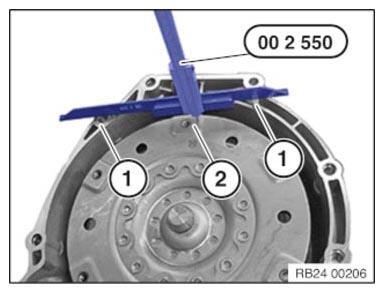

Make sure that the torque converter is in the correct installation position before installing the automatic transmission.

Courtesy of BMW OF NORTH AMERICA, INC.

Check installation dimension of torque converter.
See repair instructions for applicable model:
- REMOVING AND INSTALLING/REPLACING TORQUE CONVERTER .

NOTE: TECHNICAL INFORMATION

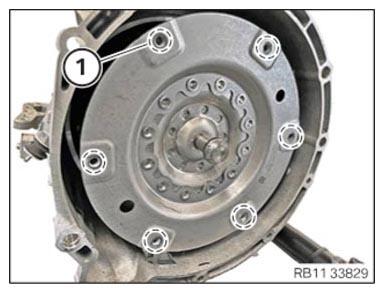

Clean all threads with a screw tap.

Clean all screw threads (1).

Courtesy of BMW OF NORTH AMERICA, INC.

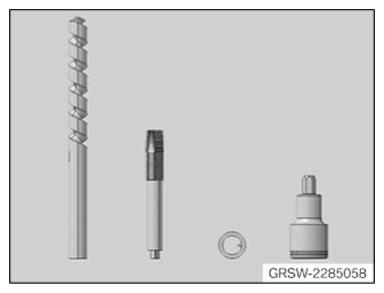

Use the set of special tools 2 285 059.

Description
Twist drill
Thread cutter M10x1.5
Deep stop
Screw in tool

Courtesy of BMW OF NORTH AMERICA, INC.

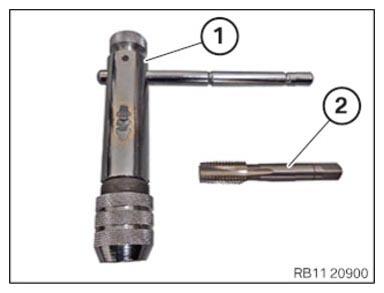

Assemble tool set.

Number	Description
1	Tool holder
2	Thread cutter M10X1.5

Courtesy of BMW OF NORTH AMERICA, INC.

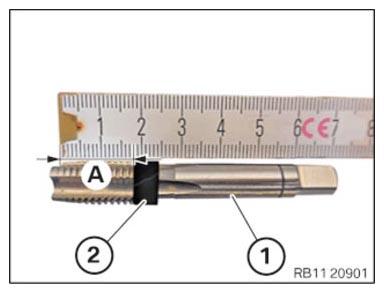

Mark screwing depth (A) on the thread cutter (1) from the special tool set 2 285 059 with a commercially available tool (2).

TECHNICAL DATA SPECIFICATION

Screw-in depth of thread cutter
	Screw-in depth	18 mm

Courtesy of BMW OF NORTH AMERICA, INC.

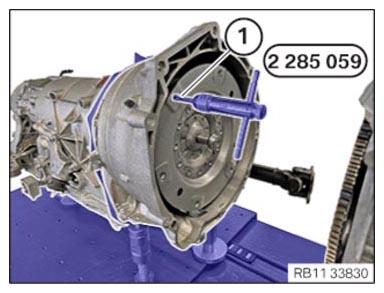

Screw in the thread cutter (1) from the set of special tools 2 285 059 until the screw-in depth is reached.

TECHNICAL DATA SPECIFICATION

Screw-in depth of thread cutter
	Screw-in depth	18 mm

Courtesy of BMW OF NORTH AMERICA, INC.

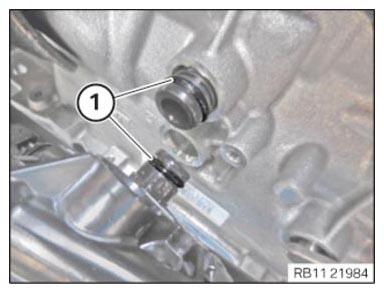

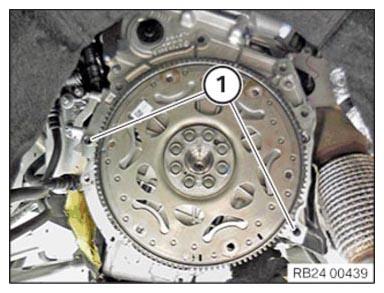

Check the fitting sleeves (1) for correct seating and damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

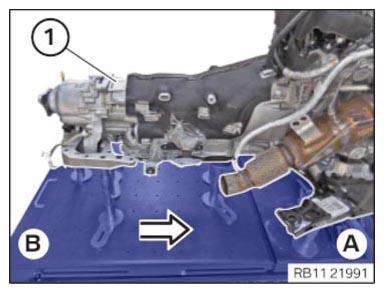

Push the table top (B) to the table top (A) in the arrow direction.
Position the automatic transmission (1) on the engine.
Turn the torque converter until the bore of the torque converter is aligned with the bore of the flywheel.

Courtesy of BMW OF NORTH AMERICA, INC.

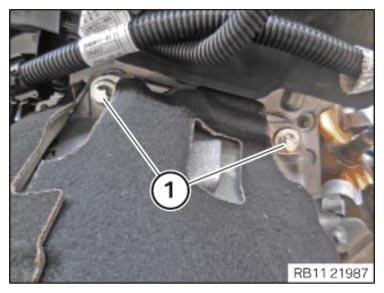

Tighten the transmission bolt (1) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

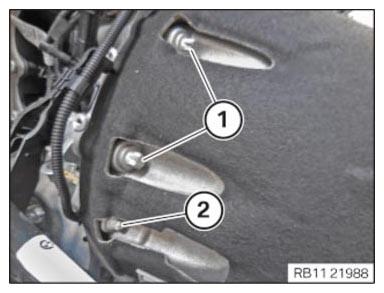

Tighten the transmission bolts (1) hand-tight.
Tighten the transmission bolt (2) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

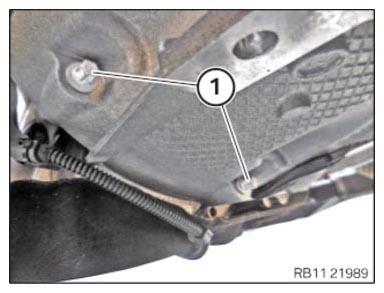

Tighten the transmission bolts (1) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

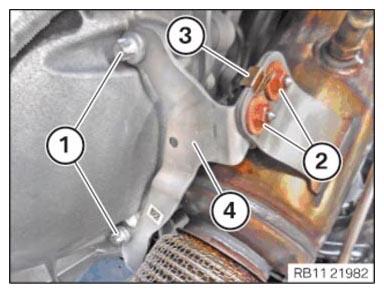

Guide in the holder (4) for the catalytic converter and position it.
Tighten the transmission bolts (1) hand-tight.
Secure clamps (3).
Replace nuts (2).
Parts: Nuts
Tighten nuts (2).

TIGHTENING TORQUES SPECIFICATION

Catalytic converter to holder
M8 Nut Replace nut.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

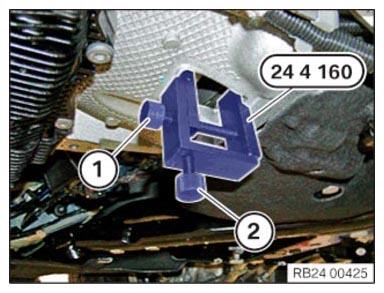

Release screw (1) and screw (2).
Remove the special tool 0 494 451 (24 4 160) .

Courtesy of BMW OF NORTH AMERICA, INC.

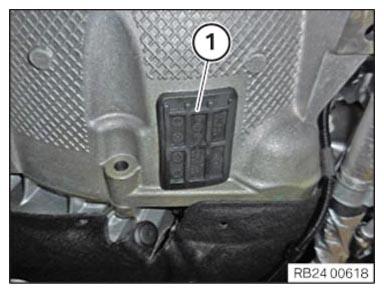

Insert and install the sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.

Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws.
Parts: Screws
Turn the engine in the direction of rotation using special tool 0 493 380 (11 6 480) on the vibration damper to tighten all 6 screws (1).

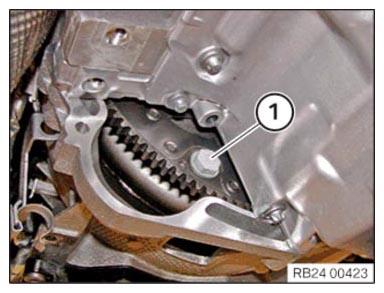

Tighten all 6 screws (1) of the torque converter using special tool 0 491 667 (24 1 110) .

TIGHTENING TORQUES SPECIFICATION

Torque converter to flywheel
M10 Replace screws.	tightening torque	56 Nm

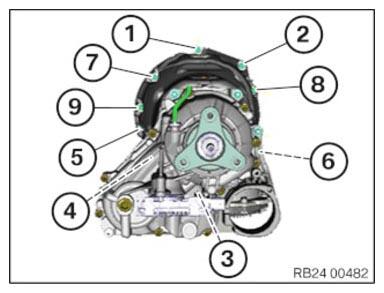

Tighten the transmission bolts in the sequence (1) to (9).

TIGHTENING TORQUES SPECIFICATION

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Fig 1: Transmission Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

Courtesy of BMW OF NORTH AMERICA, INC.

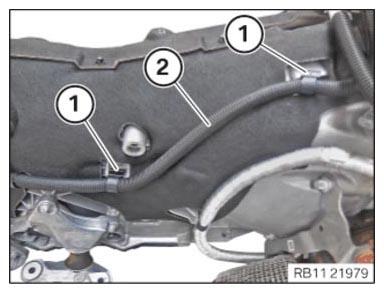

Insert and position transmission wiring harness (2).
Secure clamps (1).

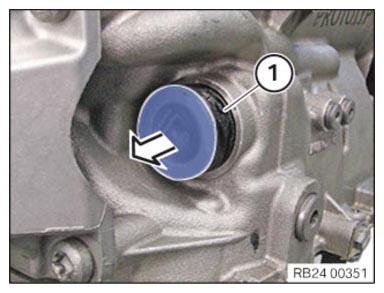

Guide out and remove the special tool 0 494 213 (24 2 390) from the sealing sleeve in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

Courtesy of BMW OF NORTH AMERICA, INC.

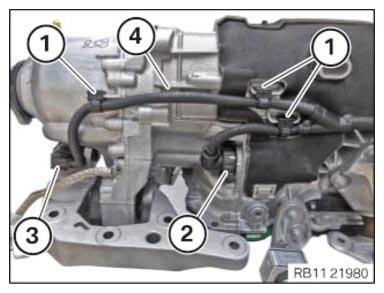

Insert and install transmission wiring harness (4).
Secure clamps (1).
Connect connectors (2) and lock.
The connector (2) must engage audibly.
Connect connectors (3) and lock.

The connector (3) must engage audibly.

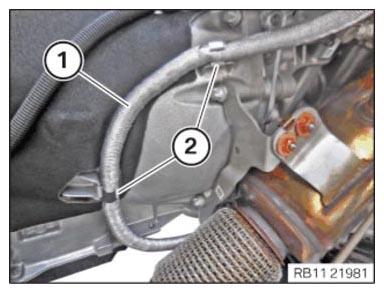

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

Route the positive battery cable without abrasions and do not trap.

Secure the positive battery cable (1) at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the sealing rings (1).
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the transmission oil line (2).
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Transmission oil line to transmission
M6x25 Replace the sealing ring.	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

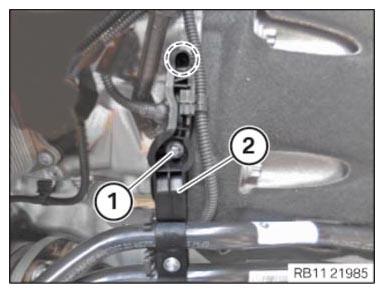

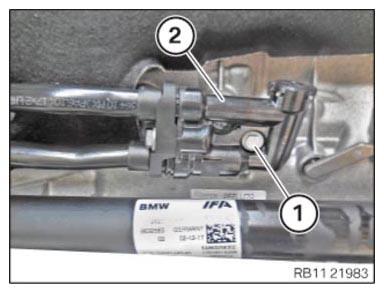

Feed in and install the holder (2) for the transmission oil lines in the marked area.
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Holder on end cover
M6X16	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

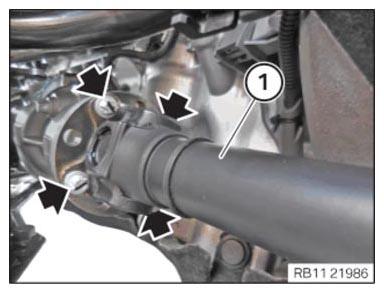

Feed in and position the prop shaft (1).
Replace the bolts (arrows).
Parts: Screws
Tighten screws (arrows).

TIGHTENING TORQUES SPECIFICATION

Prop shaft before the front axle differential
Replace screws. Joining torque and angle of rotation must be observed without fail.	Tightening torque	25 Nm
	Angle of rotation	45°

Courtesy of BMW OF NORTH AMERICA, INC.

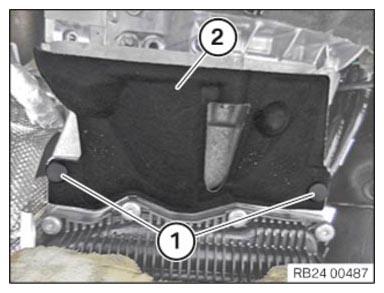

Feed the acoustic cover (2) in and install.
Feed in and install the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.

Use only the approved transmission oil.
Check the transmission oil level after completing the repair.

Make sure that the torque converter is in the correct installation position before installing the automatic transmission.

Courtesy of BMW OF NORTH AMERICA, INC.

Check installation dimension of torque converter.
See repair instructions for applicable model:
- REMOVING AND INSTALLING/REPLACING TORQUE CONVERTER .

NOTE: TECHNICAL INFORMATION
Clean all threads with a screw tap.

Clean all screw threads (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Use the set of special tools 2 285 059 .

Description
Twist drill
Thread cutter M10x1.5
Deep stop
Screw in tool

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble tool set.

Number	Description
1	Tool holder
2	Thread cutter M10X1.5

Courtesy of BMW OF NORTH AMERICA, INC.

Mark screwing depth (A) on the thread cutter (1) from the special tool set 2 285 059 with a commercially available tool (2).

TECHNICAL DATA SPECIFICATION

Screw-in depth of thread cutter
	Screw-in depth	18 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in the thread cutter (1) from the set of special tools 2 285 059 until the screw-in depth is reached.

TECHNICAL DATA SPECIFICATION

Screw-in depth of thread cutter
	Screw-in depth	18 mm

Courtesy of BMW OF NORTH AMERICA, INC.

Check the fitting sleeves (1) for correct seating and damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Push the table top (B) to the table top (A) in the arrow direction.
Position the automatic transmission (1) on the engine.
Turn the torque converter until the bore of the torque converter is aligned with the bore of the flywheel.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the transmission bolt (1) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the transmission bolts (1) hand-tight.
Tighten the transmission bolt (2) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten the transmission bolts (1) hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.
Guide in the holder (4) for the catalytic converter and position it.
Tighten the transmission bolts (1) hand-tight.
Secure clamps (3).
Replace nuts (2).
Parts: Nuts
Tighten nuts (2).

TIGHTENING TORQUES SPECIFICATION

Catalytic converter to holder
M8 Nut Replace nut.	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and screw (2).
Remove the special tool 0 494 451 (24 4 160) .

Courtesy of BMW OF NORTH AMERICA, INC.
Insert and install the sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.

Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws.
Parts: Screws
Turn the engine in the direction of rotation using special tool 0 493 380 (11 6 480) on the vibration damper to tighten all 6 screws (1).
Tighten all 6 screws (1) of the torque converter using special tool 0 491 667 (24 1 110) .

TIGHTENING TORQUES SPECIFICATION

Torque converter to flywheel
M10 Replace screws.	tightening torque	56 Nm

Tighten the transmission bolts in the sequence (1) to (9).

TIGHTENING TORQUES SPECIFICATION

Transmission to engine
M8	Tightening torque	19 Nm
M12	Tightening torque	66 Nm

Fig 1: Transmission Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

Insert and position transmission wiring harness (2).
Secure clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Guide out and remove the special tool 0 494 213 (24 2 390) from the sealing sleeve in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

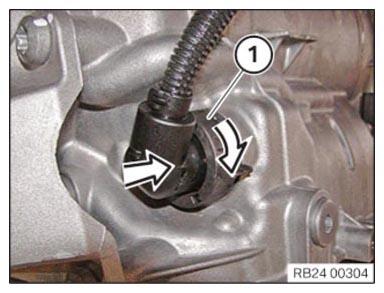

Slide connector (1) in the arrow direction and lock it by turning it.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Improper routing of the positive battery cable.
Risk of short circuits!

Route the positive battery cable without abrasions and do not trap.

Secure the positive battery cable (1) at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the sealing rings (1).
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the transmission oil line (2).
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Transmission oil line to transmission
M6x25 Replace the sealing ring.	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and install the holder (2) for the transmission oil lines in the marked area.
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Holder on end cover
M6X16	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Feed the acoustic cover (2) in and install.
Feed in and install the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
