Adjusting rear lid lock

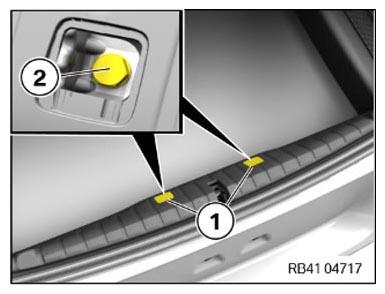

• Lever out the covers (1) with a suitable screwdriver and remove.
• Loosen screws (2) until the tailgate lock can be shifted.
• Adjust tailgate lock so that the tailgate has the predefined gap dimension relative to the rear bumper panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

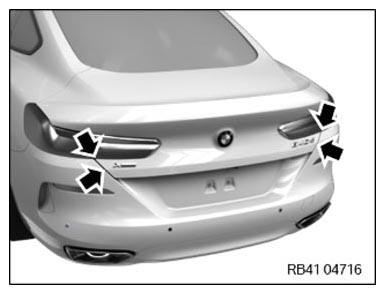

• Check the gap dimensions (arrows) between the tailgate and rear bumper cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Gap dimension trunk lid to rear bumper panel
1 trunk lid; 2 rear bumper panel	a	4.3 +1.5 -1.5 mm
Courtesy of BMW OF NORTH AMERICA, INC.	b	0.4 +1.7 -1.7 mm

Result

» Gap dimension between the tailgate and the rear bumper cover does not comply with the specifications.

Measure

• Adjust the lower part of the tailgate lock.

• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Tailgate lock to body
  Hexagon screw M8x20	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the covers (1).

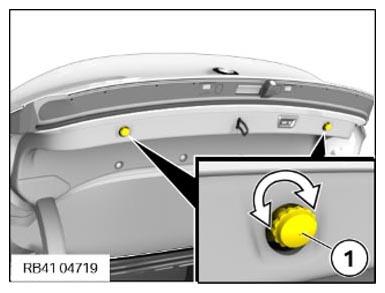

• Adjust the stop pad (1) of the trunk lid by twisting it.

Courtesy of BMW OF NORTH AMERICA, INC.
