Installing air conditioning condenser
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
- Make sure that the air conditioning condenser (1) at the bottom is correctly inserted in the rubber mount (2).

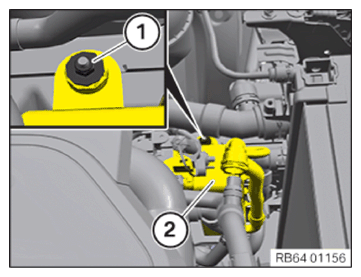

- Feed in the air conditioning condenser (2) laterally from the top.
- Tighten nut (1).TIGHTENING TORQUES SPECIFICATION
Air conditioning condenser holder on body Nut M6 tightening torque 8 Nm M6 screw tightening torque 8 Nm - Connect and lock the coolant hoses (2).
- Replace O-rings.
Parts: O-rings

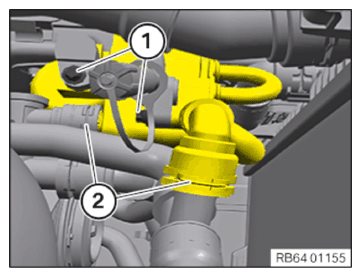

- Correctly position the refrigerant lines and tighten the screws (1).TIGHTENING TORQUES SPECIFICATION
Refrigerant lines to air conditioning condenser/connecting piece M6 Tightening torque 13 Nm
Follow-up work
- Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT PUMP .
- Refer to INSTALLING THE FRONT LEFT BOTTOM WHEEL ARCH COVER .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
- Refer to EVACUATING AND CHARGING CONDITIONING .
