Removing the lambda oxygen sensor
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING RIGHT FRONT-END STRUT .
- Refer to REMOVING INTAKE SILENCER HOUSING .
Lambda oxygen sensor
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.
- Do not pull on wires when disconnecting connectors and plug connections.
NOTE:

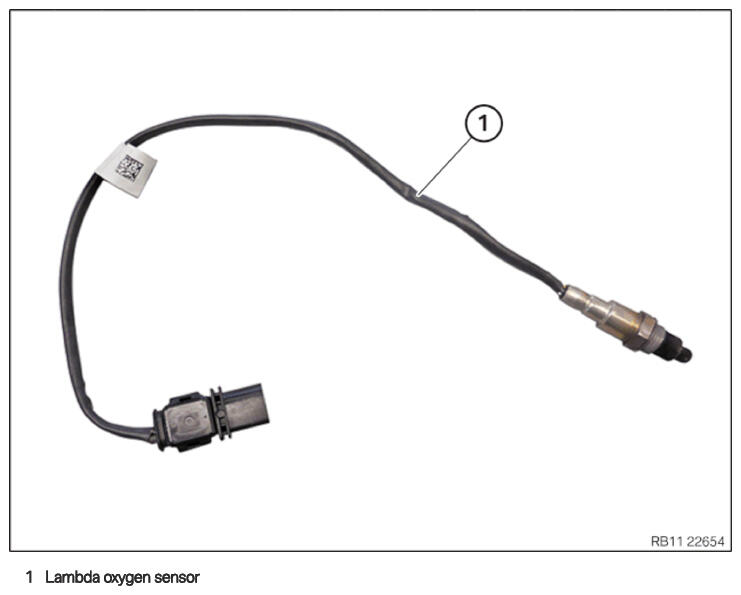

The cable of the Lambda oxygen sensor is black. The installation location of the Lambda oxygen sensor is in front of the catalytic converter.
- Unlock plug connection (1) and disconnect.
- Unlock and release the lock (1) with a standard screw driver (2).
- Guide out connector (3) in the arrow direction and place it to one side.
- Release the line of the Lambda oxygen sensor (1) from the holder (2).
- Release cable tie (3).
- Feed out the heat shield (4) in arrow direction and set aside.
- Release and remove the Lambda oxygen sensor (1) with the special tool 0 491 074 (11 7 020) .
