Prepare for the installation of the high pressure pump
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
Rotate the cam of the high pressure pump drive to the BDC position
NOTE:
RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear.

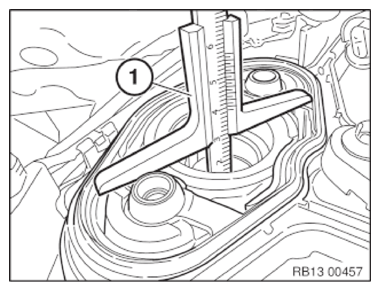

- Place the depth gauge (1) flat onto the high pressure pump flange.
- Turn the engine on the central bolt in the direction of engine rotation until the camshaft has reached the BDC position.
The depth gauge (1) is in the deepest position.

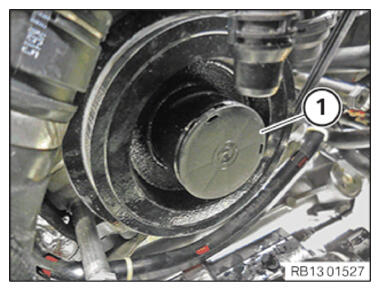

- Loosen cover (1).

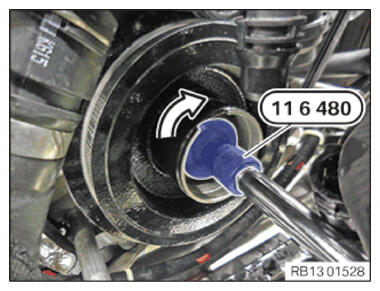

- Rotate the engine with the special tool 0 493 380 (11 6 480) in the direction of the arrow until the cam of the high pressure pump drive is at the BDC position .

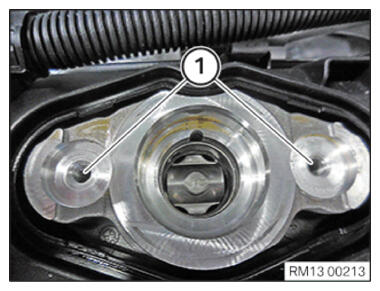

- Check the threads (1) on the high pressure pump flange for sealing compound residue: Remove sealing compound residue as needed.
- Clean the thread (1) with a thread cutter M6 .
- Make sure that no contamination gets into the engine.
- Cover opening at the high pressure pump flange with suitable materials.

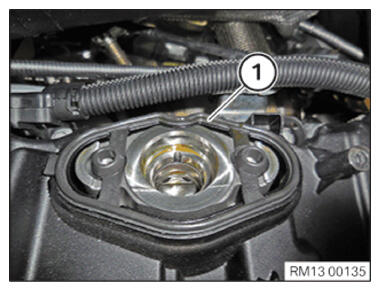

- Replace the seal (1).
Parts: Gasket
