Secure the refrigerant line to the connecting piece

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.

Replace the sealing ring.
Parts: Sealing ring

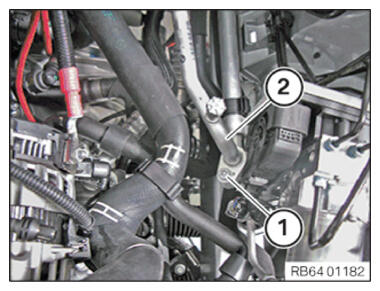

Correctly position the refrigerant line (2).
Tighten down screw (1).

TIGHTENING TORQUES SPECIFICATION

Refrigerant line to connecting piece
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
