Removing the engine from the automatic transmission (lifting table)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections.
Sheared wires can cause a short circuit.

Do not pull on wires when disconnecting connectors and plug connections.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

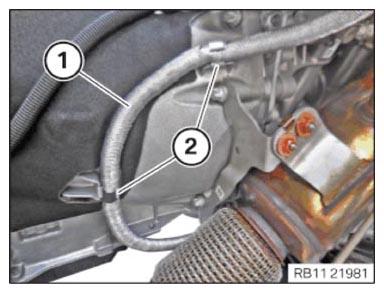

Loosen clamps (1).
Feed out the transmission wiring harness (2) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.

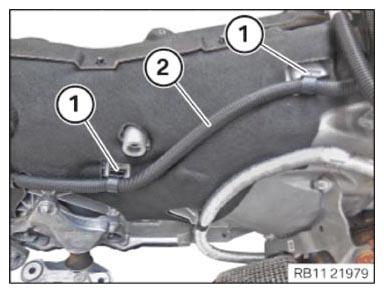

Loosen clamps (1).
Unlock plug connection (2) and disconnect.
Unlock plug connection (3) and disconnect.
Feed out the transmission wiring harness (4) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the special tool 0 494 213 (24 2 390) in the sealing sleeve (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove positive battery cable (1) from clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

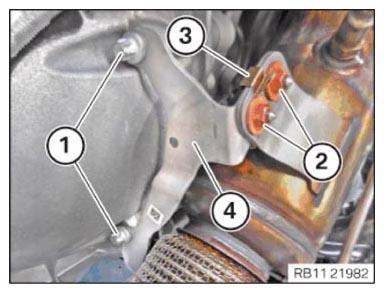

Loosen nuts (2).
Loosen screws (1).
Loosen clamp (3).
Feed out and remove the bracket (4) for the catalytic converter.

Courtesy of BMW OF NORTH AMERICA, INC.
Pull the expanding rivet (1) off.
Remove the acoustic cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Guide out and remove sealing cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

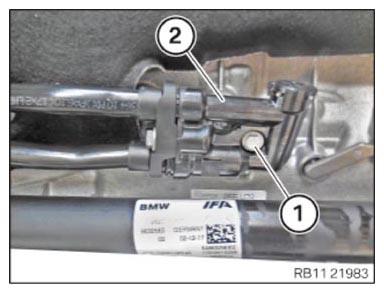

Loosen screw (1).
Feed out the transmission oil line (2) and place it to the side.
Catch and dispose of the leakage transmission oil.

Courtesy of BMW OF NORTH AMERICA, INC.

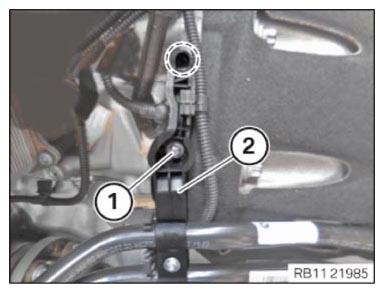

Loosen screw (1).
Feed out the bracket (2) for the transmission oil line in the marked area and set aside.

Courtesy of BMW OF NORTH AMERICA, INC.
Remove screws (arrows).
Protect the prop shaft (1) from falling.

Courtesy of BMW OF NORTH AMERICA, INC.
Fit special tool 0 493 380 (11 6 480) .
NOTE:
RISK OF DAMAGE
Damage to the engine.
If the engine is manually rotated in the wrong direction of rotation, the engine can be damaged.
- Only rotate the engine manually in the correct direction of rotation: a) clockwise when looking at the damper, or b) counterclockwise when looking at the chain drive. b) applies only if the timing chain is installed in the rear.
Courtesy of BMW OF NORTH AMERICA, INC.
Turn the engine by hand with the special tool 0 493 380 (11 6 480) .
Turn the engine on the vibration damper with the special tool 0 493 380 (11 6 480) in the direction of rotation until the bolt (1) becomes visible in the recess.
Release all 6 screws (1) the torque converter.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare the special tool 0 494 478 (24 4 161) (1) with the shaped part 0 494 965 (24 4 165) (2) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert special tool 0 494 451 (24 4 160) into the recess of the transmission housing and apply slight tension using the screw (1).
Screw the bolt (2) in to the stop.
Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

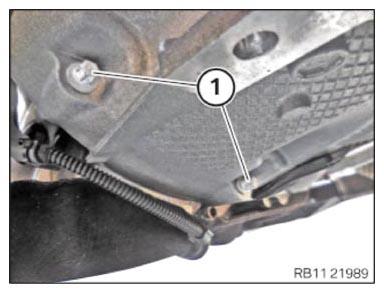

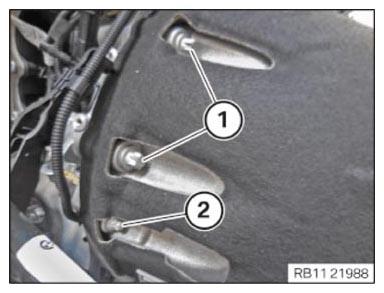

Unscrew the transmission bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Unscrew the transmission bolts (1).
Loosen the transmission bolt (2).

Courtesy of BMW OF NORTH AMERICA, INC.

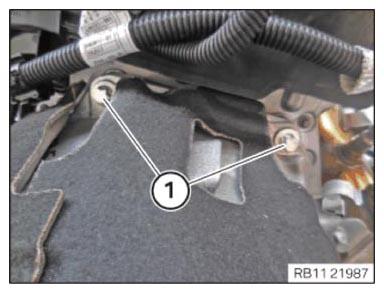

Unscrew the transmission bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

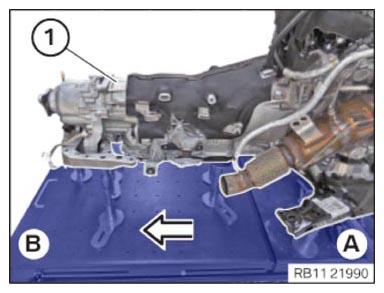

Push tabletop (B) in the direction of the arrow and push automatic transmission (1) to the side.

Courtesy of BMW OF NORTH AMERICA, INC.
