Remove the wheel arch cover on the front left and bottom right

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for right component only. The procedure on the left side is identical.

Removing the front lower wheel arch cover

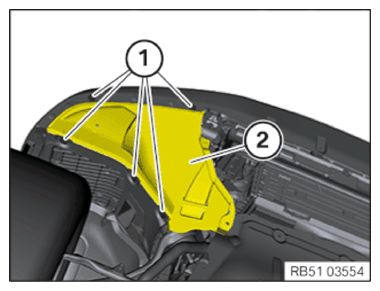

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Loosen screws (1).
Guide the wheel arch cover (2) out.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.

Release all bolts (arrows).
Guide the wheel arch cover (1) out.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the front lower wheel arch cover

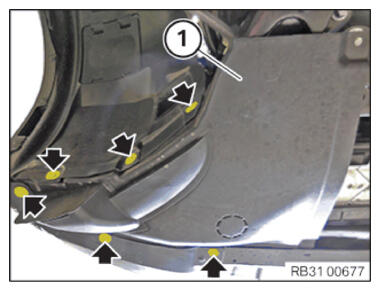

Release all bolts (arrows).
Guide the wheel arch cover (1) out.

Courtesy of BMW OF NORTH AMERICA, INC.
