Releasing the front left and right brake calipers

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

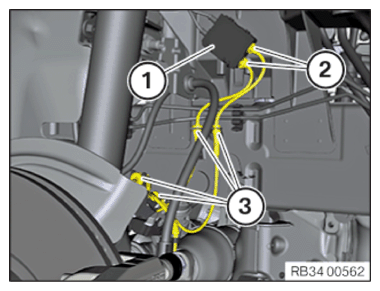

Open the housing (1).
Unlock and disconnect plug connections (2).
Loosen the cable clip (3).

Courtesy of BMW OF NORTH AMERICA, INC.

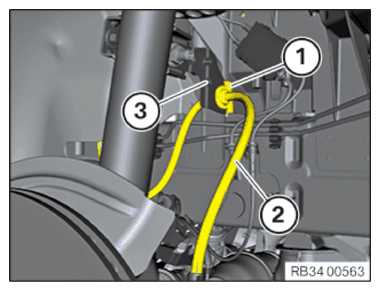

Unlatch the grommet (1) of the brake hose (2) from the holder (3).

Courtesy of BMW OF NORTH AMERICA, INC.

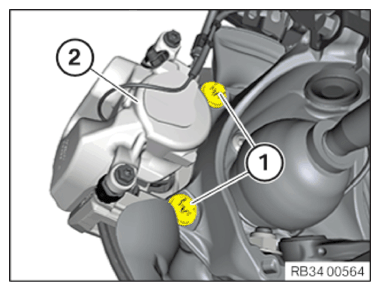

Loosen screws (1).
Remove brake caliper (2).

Courtesy of BMW OF NORTH AMERICA, INC.

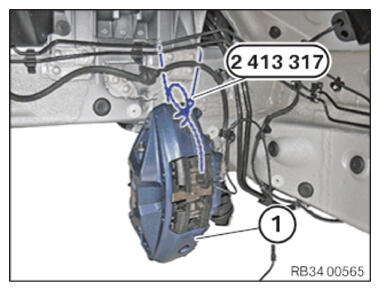

Tie up the brake caliper (1) with the special tool 2 413 317 .
Do not hang the brake caliper (1) from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.
