Prepare the mobile table lift
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
Mobile lifting table
- Stage the mobile table lift 2 184 136
.
- Place the mounting element from the set of special tools 2 305 379
ready.

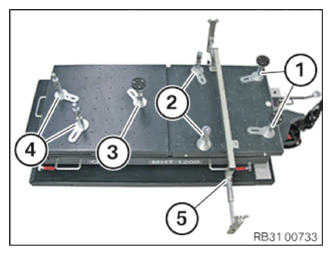

- Work surface A (mounting for the engine):
Position the mounting element (1) with the mount 80 with the coordinates 7/2 and 7/7 .
Position the mounting element (2) with the mount 60 with coordinates 3/2 and 3/7 .
Position the mounting element (5) with the mount for the pivot bearing for the coordinates 4/1 and 5/8 .
- Work surface B (mounting for the transmission):
Position the mounting element (3) with the mount 80 for coordinates 7/4 .
Position the mounting element (4) with the mount 50 for coordinates 2/4 and 3/7 .
- Adjust the inclination of the lifting table (1) with the adjustment screw (2) until the bubble level of the lifting table (1) displays the correct position.
