Positioning the output shaft, right, at the swivel bearing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

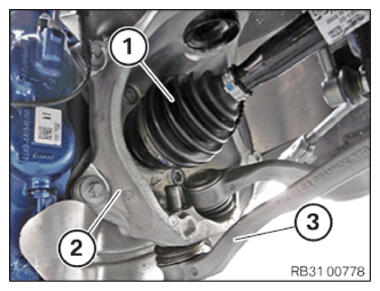

Position the output shaft on the swivel bearing

Position output shaft (1) on the swivel bearing (2).
Position the wishbone (3) on the swivel bearing (2).
